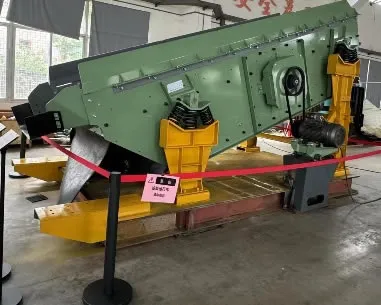

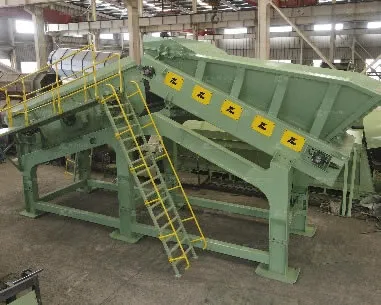

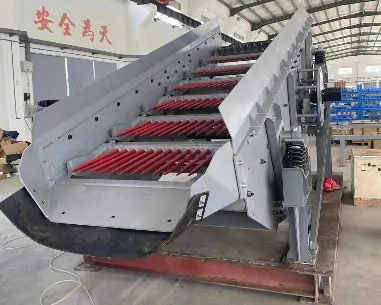

Recycling Finger Screens

Production Capacity:

80~200m³/h

Applicable Industries:

Woods, Plastics, Rubble and General Waste, Construction Industry.

Power:

5.5-15KW

Core Components:

single shaft screenbox

Place of Origin:

Henan, China

Recycling Finger Screens are designed to handle recycled materials such as woods, plastics, rubble and general waste. They can also be used for scalping applications for the construction industry.

Email: sales@zchmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

FINGER SCREEN (GRIZZLY FINGER SYSTEM/SCALPING SCREEN)

The Zhongcheng finger screen (grizzly finger system / scalping screen) is designed specifically for the waste disposal, recycling, topsoil, compost and also gravel industries. In addition, with no cross-wires the material being processed cannot clog or catch on the screening surface. The series of fingers produces a cascade, therefore it produces excellent screening in demanding applications.

Materials for finger screen

Optimally suitable for all types of recycling material such as, e.g. domestic, industrial and bulky waste, wrappings, biomass, matured timber, plastic wastes, electronic waste, roofing paper, shredder material, building rubble, mixed construction site waste, etc.

Characteristics

Variable angle adjustment/ Fingers and holders individually replaced

Fingers manufactured from high quality high tensile steel/ Robust modular design, therefore tailored to suit all makes of screening equipment

Easy to fit, as a result it fits with no modification required to your screenbox

Wide range of apertures and wire diameters, therefore suit individual screening needs

Working Principle and Application

They are circular motion screens and are typically fitted with a single shafted vibrator unit and installed between 14-22 degrees downhill which can be adjusted.

Zhongcheng Recycling Finger Deck Screens are designed specifically for long life and low maintenance. The majority of Zhongcheng Finger Deck Screens are custom designed to fit into existing structures and buildings when current machines are in need of replacement.
