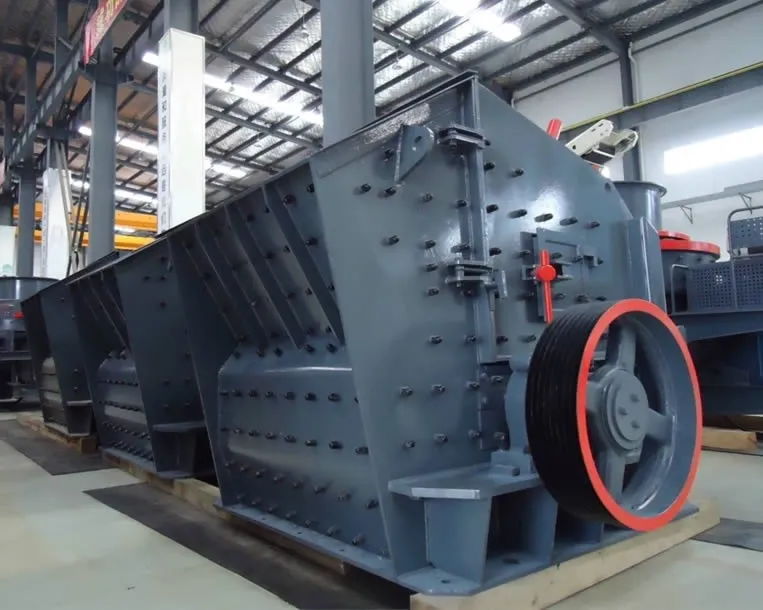

Impact Crusher

Production Capacity:

30-400t/h

Applicable Industries:

rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, water conservancy and chemical industry.

Power:

90 - 400kW

Core Components:

chromium alloys resistant liners and hammers,hydraulic hood

Place of Origin:

Henan, China

CI series impact crusher is the latest technological breakthrough in the field of mining crushing equipment, which increases the diameter of the feed port and rotor. Compared with the traditional impact crusher, it is more energy-saving.

Email: sales@zchmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

Advantages of CI series impact crusher

Compared with traditional impact crushers, large-mouth impact crushers have larger feed openings and crushing chambers, higher crushing ratios, better particle size control, and lower energy consumption and maintenance. cost and a wider range of applications. These advantages make it more competitive and market-demanding in the crushing field.

CI series impact crusher of Application

Large-mouth impact crushers are often used to process coarse, medium, and fine crushing of various soft and medium-hard ores. In the field of mining crushing equipment, it can handle various coarse, medium, and fine materials, such as granite, limestone, concrete, etc. In the water conservancy engineering and construction industries, large-mouth impact crushers also play a key role. It can provide the required sand and gravel aggregates for these areas to meet different construction needs.

With its large feed opening, high crushing capacity, and wide range of applications, the large-mouth impact crusher has important applications in many fields such as metallurgy, mining, transportation, construction, chemical industry, and energy. It can not only improve production efficiency, and reduce energy consumption and maintenance costs, but also provide high-quality sand and gravel aggregates for various industries to meet different production needs.

Mobile Impact Crusher

Jaw Crusher

Impact Crusher

Characteristics

Larger feed opening and crushing chamber: The large-mouth impact crusher has a larger feed opening and crushing chamber, which allows it to handle larger and harder materials. This feature makes it more efficient when handling bulk materials in mines, quarries, and other scenarios.

Higher crushing ratio: Due to the larger crushing cavity and more efficient crushing mechanism, the large-mouth impact crusher can achieve a higher crushing ratio. This means it can break materials into finer particles to meet a wider range of application needs.

Better particle shape control: By optimizing parameters such as the rotor speed, and the gap between the impact plate and the grinding chamber, the large-mouth impact crusher can better control the discharge particle size and achieve a more uniform particle shape. This is particularly important for applications that require specific particle types (such as construction, chemical, and other industries).

Lower energy consumption and maintenance costs: The large-mouth impact crusher adopts advanced crushing technology and an efficient power system, which has lower energy consumption. At the same time, its sturdy and durable structural design and high-quality wearing parts make maintenance costs lower and reduce operating costs for users.

Working Principle and Application

CI series Large caliber impact crusher is a kind of crusher that uses impact principle to crush materials. When it is working, the rotor rotates at high speed driven by the motor. When the material enters crushing area of the hammer, it hits the hammer on the rotor and breaks, then which is thrown to the counterattack device to be crushed again, and then bounce back from the counterattack liner to crushing area of the hammer to crushing.

This crushing process is circulating, the material enters the first, second, and third chamber from large to smaller for repeat crushing until the material is crushed to qualified output size, then discharged from outlet. Adjusting the gap between the counterattack frame and the rotor can change output size and the shape of the material.

Parameters

Type	Rotor		Number of blow bars	Feed size 1) (max.)	Drive power 2)	Throughput 3) Diameter Width (max.)
Type	Diameter	Width	Number of blow bars	Feed size 1) (max.)	Drive power 2)	Throughput 3) Diameter Width (max.)
PB 0806	800 mm	620 mm	2 (optionally 3)	400 mm	37 - 55 kW	50 t/h
PB 0810	800 mm	1,030 mm	2 (optionally 3)	400 mm	55 - 90 kW	90 t/h
PB 1010	1,000 mm	1,030 mm	3	600 mm	90 - 132 kW	135 t/h
PB 1013	1,000 mm	1,280 mm	3	600 mm	132 - 160 kW	160 t/h
PB 1212	1,250 mm	1,250 mm	4	800 mm	132 - 200 kW	225 t/h
PB 1216	1,250 mm	1,580 mm	4	800 mm	160 - 250 kW	335 t/h
