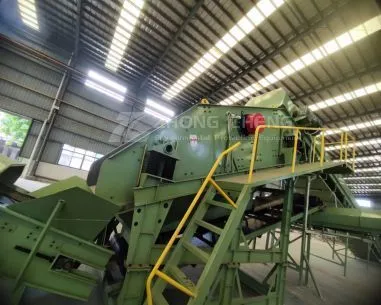

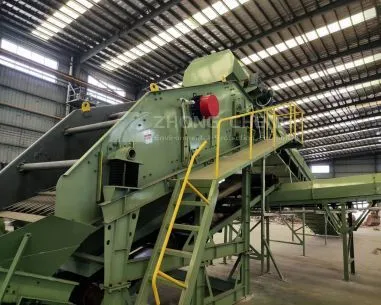

Vibrating Screen

Production Capacity:

30-200m³/h

Applicable Industries:

Metal Minerals，Sand, aggregate,

Power:

15kw

Core Components:

Sieve plate、PLC

Place of Origin:

Henan, China

Screening is a method to separate and sort recycling materials and bulk goods. designs and manufactures customized vibrating screens or vibrating sorters. We supply both linear vibratory screen and circular vibrating screens equipped with single or multiple decks

Email: sales@zchmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

linear vibrating screen is mainly composed of box type vibration exciter, screen box, vibration damping spring, support and driving device, and the running amplitude track is linear. The screen machine can be arranged horizontally or at an inclined angle. It is widely used in wet classification, dewatering, demineralization, tailings dry discharge and other process links in mineral processing, coal preparation, gravel aggregate, building materials, chemical industry and other industries. The screen surface structure is generally divided into single layer or double layer. The model of screen unit can be customized according to customer requirements.

Characteristics

The screen machine wallboard is not welded, and the plate is made of high-strength alloy steel plate with better impact toughness. The imported Huck rivets are used for hydraulic tension assembly

The parts that are easy to impact and wear can also be protected by rubber parts, which are resistant to erosion and wear

High efficiency helical gear box type exciter, with super large exciting force, ultra-low noise, stable operation and long service life; The eccentric block is arranged outside the exciter box, so that the amplitude can be adjusted by changing the counterweight setting

Product serialization to meet the production requirements of customers under different process conditions; Polyurethane screen panel is modular, more versatile and more convenient to replace

Working Principle and Application

The vibration force of swing vibration tumbler screen generated by the drive device is an inertial force that changes in a certain pattern. The screening motion is a reciprocating inertial force generated by the rotation of the eccentric wheel driven by the motor around a fixed axis. The screen surface is generally horizontal or slightly inclined. After the sieve machine is started, the screen body reciprocates back and forth under the action of inertial force, so that the materials on the screen surface follow the screen box and performs a rotary motion on the plane to complete the screening work, the basic rotary motion is very similar to manual screening.

Parameters

	Nominal Aperture Size (mm) of Screening Elements	Stroke (mm)	Speed (rpm)	G Index (target) Loaded
Scalping	>75	12.0 - 10.5	750 - 800	3.8
Ballast	75 to 32	10.0 - 8.5	850 - 900	4.0
Aggregates	25.4 to 6.7	9.0 - 8.0	900 - 950	4.1
Fines Separation	<6.7	8.0 - 7.0	950 - 1000	4.0
