C Series Jaw Crusher
-
Production Capacity:
50-500T/H
-
Applicable Industries:
rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, water conservancy and chemical industry.
-
Power:
55-280KW
-
Core Components:
eccentric shaft with heavy-duty double roll spherical roller bearings.
-
Place of Origin:
Henan, China

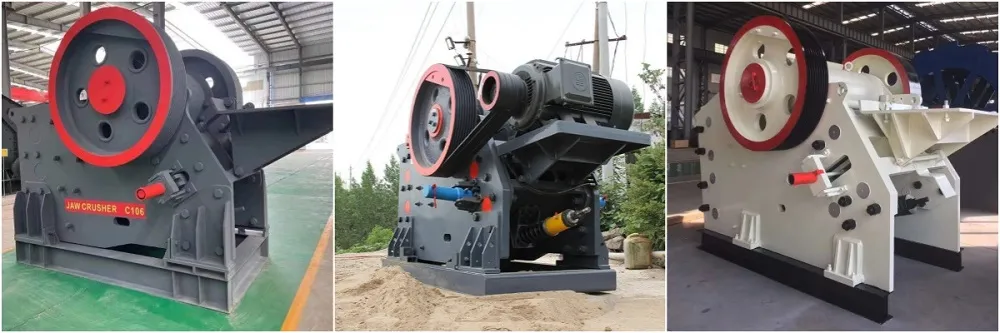

C series jaw crusher is a jaw crusher with excellent performance introduced and developed by zchmachinery according to the market demand. Compared with traditional jaw crushers, it has significant improvements in motion parameters, structural forms, and adjustment methods.
- Product Details
- Characteristics
- Working Principle and Application
- Parameters
Product Details
Advantages of C Series Jaw Crusher
The C series jaw crusher has significant advantages over traditional jaw crushers or other types of jaw crushers.
C series jaw crusher is widely used in construction, building materials, transportation, mining, chemical industry, water conservancy, and other fields due to its advantages of high output, low energy consumption, reliable structure, easy operation and maintenance, wide application, excellent crushing effect, flexible adjustment, and easy transportation and installation. It has been widely used in other industries.
C Series Jaw Crusher of Application
C series jaw crusher is used in the mining industry for crushing and beneficiation of ore. It can process raw ore into coarse, medium, and fine crushing to meet the different needs of mine production. It can crush large stones into suitable specifications and provide high-quality aggregate for the construction of roads and railways.
Characteristics
-
01High output, low energy consumption, stable operation: The C series jaw crusher has been optimized to achieve high output while achieving low energy consumption. This helps reduce production costs and improve overall economic efficiency. The use of advanced structures and materials makes the equipment more sturdy and durable.
-
02Wide application, easy operation, and maintenance: The C series jaw crusher is suitable for the coarse crushing of various rocks and ores. The equipment adopts a user-friendly design, making the operation easier. At the same time, its maintenance is relatively easy, reducing maintenance costs and time.
-
03Excellent crushing effect: Due to the unique crushing cavity design, the jaw plates can be used interchangeably, causing the crushing surface to wear evenly and improving the crushing effect. In addition, its adjustable transmission angle structural design also helps to increase output.
-
04Flexible adjustment method: The discharge port of the C series jaw crusher adopts a double jack hydraulic adjustment method, making the adjustment faster and more labor-saving. At the same time, its fixed jaw plate and movable jaw plate are common, which reduces the number of spare parts for users and reduces costs.
Working Principle and Application
C series jaw crushers are widely used in mining, metallurgy, construction, highways and railways, chemical industry, and other industries. Its advantages of high output, low energy consumption, reliable structure, easy operation, and maintenance make it an indispensable crushing equipment in these industries.
Parameters
*The output will vary according to different materials, feed particle size and other factors
| Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Outlet adjusting range(mm) | Centrifugal Shaft Speed(rmp) | Capacity (t/h) | Motor Power (kw) |
| Stationarytype application | ||||||
|---|---|---|---|---|---|---|
| C80 | 500×750 | 400 | 40-150 | 290 | 50-160 | 55-75 |
| C90 | 610×910 | 500 | 60-180 | 260 | 60-180 | 90 |
| C100 | 760×1060 | 600 | 70-200 | 260 | 150-300 | 132 |
| C110 | 850×1100 | 700 | 70-200 | 230 | 200-400 | 132-160 |
| C125 | 950×1250 | 800 | 100-250 | 220 | 300-800 | 160 |
| C140 | 1070×1400 | 900 | 125-270 | 220 | 400-900 | 200 |
| C160 | 1200×1600 | 1000 | 150-300 | 220 | 500-1200 | 250 |
| C200 | 1500×2000 | 1200 | 175-300 | 200 | 800-1400 | 400 |
