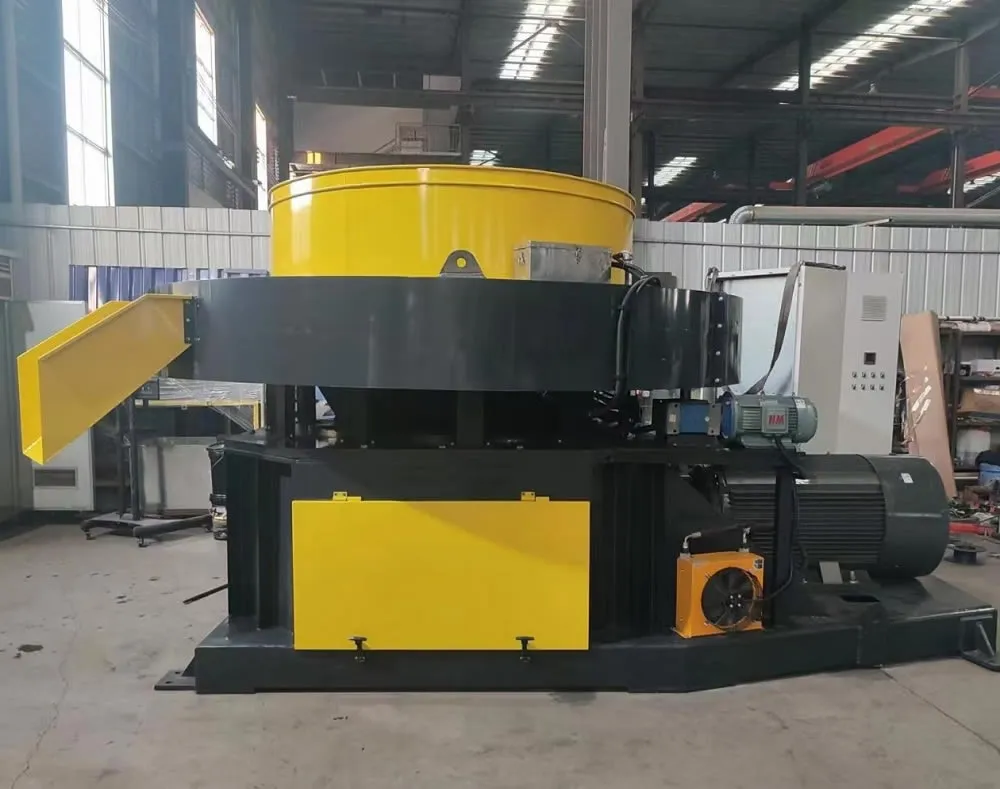

RDF Making Machine
-
Production Capacity:
1-2T/H
-
Applicable Industries:
Used tires Bulky waste MSW (Municipal solid waste) Industrial waste (textile, carpet, fabric) Commercial waste (e.g., scrap plastic, wood, paper)
-
Power:
75+3kw
-
Core Components:
Sieve plate、PLC
-
Place of Origin:
Henan, China
The non-recyclable garbage with high calorific value, after crushing, the moisture content is controlled within a certain range, and the material is sent to the feed port of the RDF briquetting
- Product Details
- Characteristics
- Working Principle and Application
- Parameters
Product Details
The non-recyclable garbage with high calorific value, after crushing, the moisture content is controlled within a certain range, and the material is sent to the feed port of the RDF briquetting machine through the feeding conveyor, and the material is forced to be extruded from the mold into a block. RDF-5 type of pellets, square or round fuel rods.
Characteristics
-
01It adopts planetary gear reducer and unique design of four pressure rollers
-
02The independent discharge device ensures the molding rate of granulation
-
03Patented cooling system, constant temperature production, to achieve continuous 24-hour non-stop work.
-
04High yield, high efficiency, low energy consumption, low failure and low cost.
Working Principle and Application
The non-recyclable garbage with high calorific value, after crushing, the moisture content is controlled within a certain range, and the material is sent to the feed port of the RDF briquetting machine through the feeding conveyor, and the material is forced to be extruded from the mold into a block. RDF-5 type of pellets, square or round fuel rods.
Parameters
| RM100 | RM300 | RM500 | |
| Power | 75+3kw | 220+3.7kw | 280+4.2kw |
| Ring die diameter | 580mm | 780mm | 980mm |
| Cooling type | Oil cooling | Oil cooling | Oil cooling |
| Running noise | < 80 db | < 80 db | < 80 db |
| Feed moisture limit | 15-20% | 15-20% | 15-20% |
| Feed material size limit | <50mm | <50mm | <50mm |
| Pellet Diameter | 20mm | 20mm | 20mm |
| Capacity | 1-2T/H | 2-3T/H | 4-5T/H |
CONTACT US
ZCH MACHINERY
Zhengzhou City, Henan Province, China
+8618738194110
24-hour online service
Own factory processing
Ask for more details from the seller
Contact Supplier
Products
Leave a Message
We not only provide a good product, but also provide high quality service. If you are interested in our products, you can contact us in the following ways.
Contact Us
Our factory possess more than 10 experienced engineers ,and we will find a matching solution for you. Get in touch with us directly.
Relate Products
-
RDF Making MachineRDF (Refuse Derived Fuel) making machine is a specialized equipment used in waste management and energy recovery processes. Its primary function is to convert v...Get Quote
-

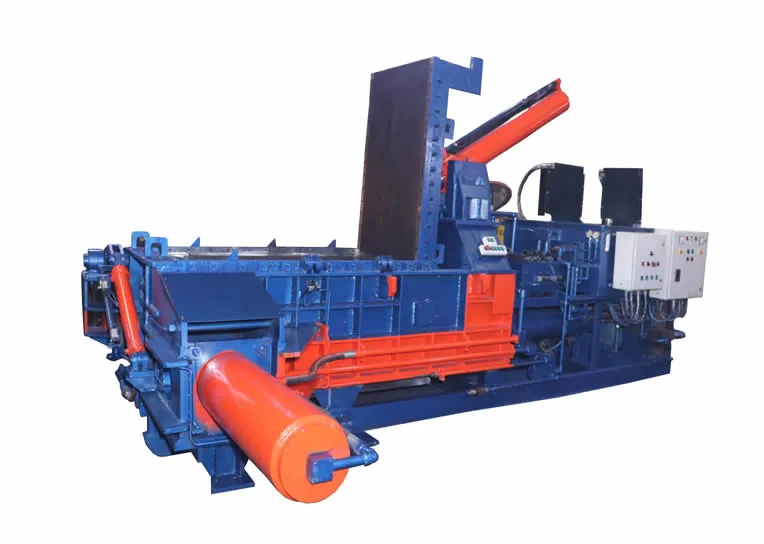

Metal BalerMetal baler, specifically a hydraulic metal baler, is a machine designed to compress scrap metal into dense, manageable bales. This equipment is widely used in ...Get Quote -

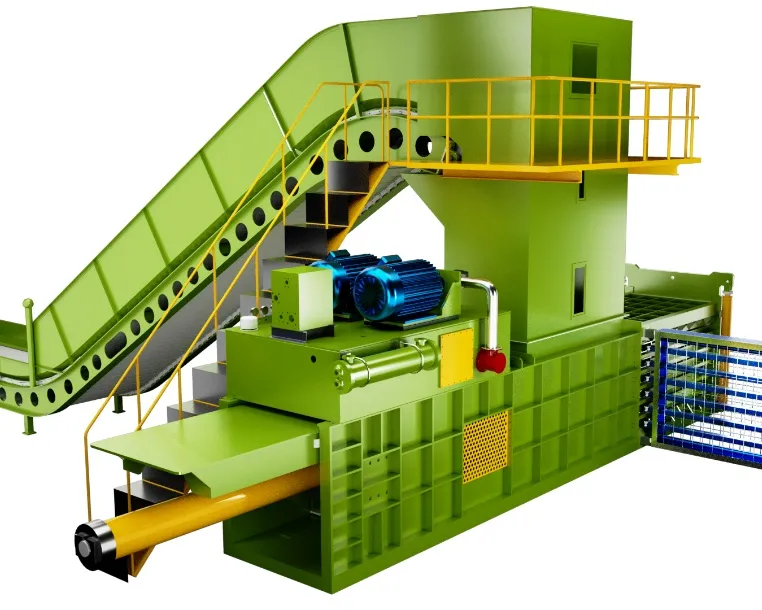

Waste Baler For MSWHigh density solid waste balers are the final step before sending waste to landfill. Horizontal balers designed and manufactured for this difficult job and prov...Get Quote -

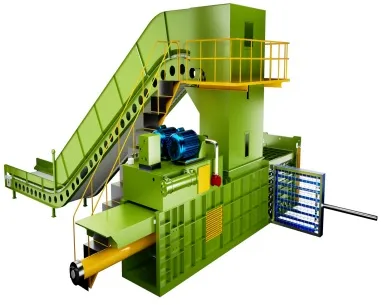

Semi auto balerSemi automatic balers are used across the logistics, recycling and manufacturing sectors to process large volumes of waste materials such as cardboard, film, pa...Get Quote
