Mobile Jaw Crusher Plant

Production Capacity:

50-300T/H

Applicable Industries:

aggregate production, construction material recycling, and mining operations.

Power:

18.5-180kw

Core Components:

jaw plates/ cheek plates/ Eccentric shaft / Frames

Place of Origin:

Henan, China

Mobile jaw crushing station is a novel rock crushing equipment, also known as mobile crushing station. The purpose of its design concept is to stand from the customer's standpoint, take the elimination of obstacles to customers' crushing operations caused by the crushing site and environment as the primary solution, and truly provide customers with efficient and low-cost project operation hardware facilities.

Email: sales@zchmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

Advantages of Mobile Jaw Crusher Plant

The mobile jaw crushing station has become one of the important pieces of equipment in the current field of rock crushing due to its high flexibility, integrated design, high efficiency and output, strong adaptability, environmental protection and energy saving, and reduced operating costs.

Mobile Jaw Crusher

Jaw Crusher

Mobile Impact Crusher

Characteristics

High flexibility The mobile jaw crusher plant is designed so that it can be easily moved to any place needed without complex site infrastructure installation. This gives it great flexibility when handling materials in a variety of sites and environmental conditions.

High efficiency and output The mobile jaw crushing station has efficient crushing capacity and large material handling capacity, and can meet large-scale, high-output production needs. Its crushing ratio is larger, saving space, and its output and crushing efficiency are also higher.

Strong adaptability and reduced costs It can achieve ideal crushing results whether it is hard rock or soft rock; the high degree of automation reduces manual operations, thereby reducing labor costs. In addition, its efficient crushing capacity and large material handling capacity also improve production efficiency and further reduce operating costs.

Environmental protection and energy saving The equipment is equipped with a dust filter, which will not produce dust and noise problems during operation, and complies with national environmental protection requirements. At the same time, the motor has a good energy-saving effect, reducing energy consumption and realizing green production.

Working Principle and Application

Mobile Jaw Crusher of Application

Mobile jaw crushing plant have been widely used in many industries and fields due to their advantages such as high efficiency, flexibility, and environmental protection. Whether it is mining, road construction or urban demolition, it can exert excellent crushing effects and provide strong support for various projects.

The main working parts of the mobile jaw crushing station include two jaw plates, one is a fixed jaw plate (fixed jaw) and the other is a movable jaw plate (movable jaw). These two jaw plates simulate the movement of the two jaws of an animal. The motor drives the belt and pulley, causing the movable jaw to move periodically.

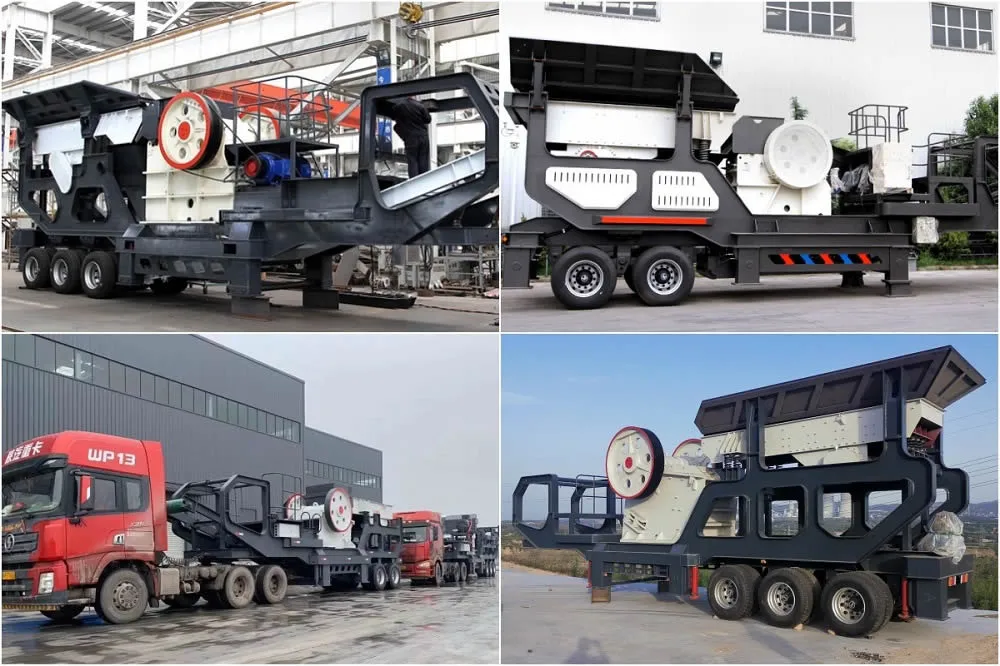

Jaw-Type Mobile Crusher Plant – Primary Crushing


When the motor drives the eccentric shaft to rotate, the movable jaw moves up and down accordingly. When the movable jaw rises, the angle between the movable jaw and the fixed jaw becomes larger, causing the movable jaw plate to approach the fixed jaw plate. The material is clamped between the two jaw plates and is subjected to multiple crushing forces such as squeezing, rubbing, and grinding. thereby achieving fragmentation. When the movable jaw descends, the angle between the two jaw plates becomes smaller, the movable jaw plate leaves the fixed jaw plate under the action of the spring, and the crushed material is discharged from the discharge port at the lower part of the jaw cavity under the action of gravity.

The mobile jaw crushing station realizes batch crushing of materials by continuously performing the above crushing process. In addition, the mobile jaw crushing station is also equipped with auxiliary equipment such as feeding, screening, and conveying to form a complete crushing production line.

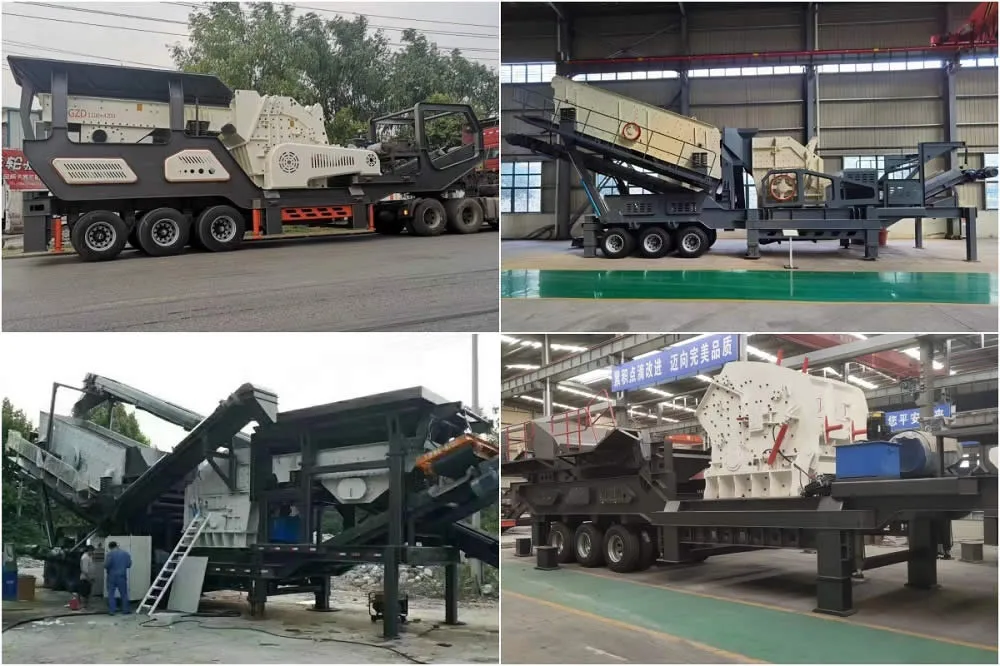

Impact Type Mobile Crusher Plants – Low Production Cost

Parameters

Model	SMC600	SMC750	SMC900	SMC1060	SMC1200	SMC1300PEX
Transport size
Length(mm)	8600	9600	11097	13300	15800	9460
Width(mm)	2520	2520	3759	2900	2900	2743
Height(mm)	3770	3500	3500	4440	4500	3988
Alex weight(kg)	10121	14500	21380	38430	64000	14730
King pin weight(kg)	5118	7500	10890	19450	34000	10490
Jaw crusher
Model	PE	PE	PE	PE	PE	PEX
Feed opening(mm)	400X600	500X750	600X900	750X1060	900X1200	300X1300
Discharging hole setting range(mm)	40-100	50-100	65-180	80-180	95-225	20-90
Capacity(t/h)	15-60	40-110	90-180	110-380	220-450	30-105
Feeder
Feed hopper volume	3	4	7	10	10	3
Hopper width	2200	2500	3000	3000	3000	2200
Model	ZSW6520	ZSW8530	ZSW9638	ZSW1142	ZSW1349	ZSW8530
Belt conveyor
Model	B650X6	B800X7	B1000X8	B1000X11	B1200X13	B1000X7
