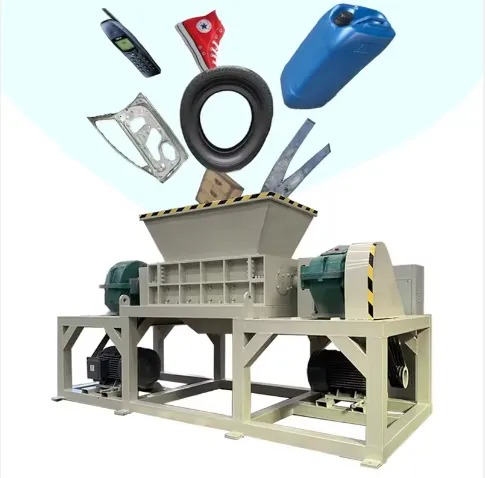

Tire double shaft shredder

Production Capacity:

2000-3000kg per hour

Applicable Industries:

Recycling

Power:

30kw*2 sets

Core Components:

blades, shaft

Place of Origin:

Henan, China

A tire double shaft shredder is a type of industrial equipment used for the size reduction of tires

Email: sales@zchmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

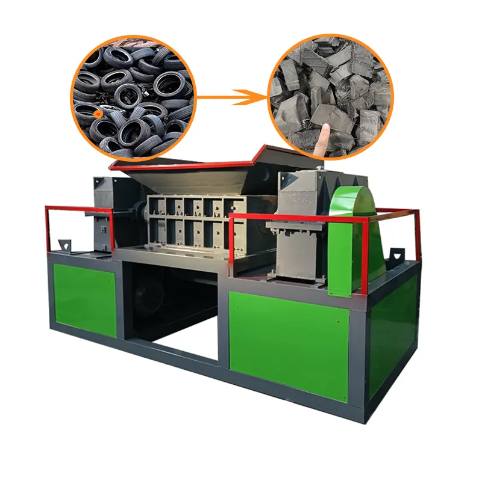

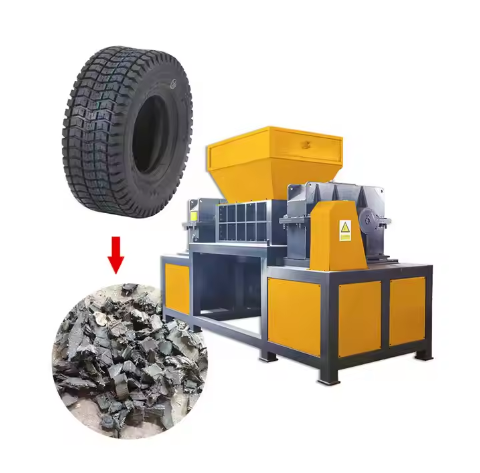

A tire double shaft shredder is a type of industrial equipment used for the size reduction of tires. This machinery is designed to efficiently and effectively break down whole or cut-up tires into smaller, more manageable pieces, often referred to as "shreds" or "chunks."

Characteristics

Double Shafts: These shredders typically have two interlocking shafts equipped with heavy-duty cutters. The rotation of these shafts in opposite directions helps to grip and tear the material.

Cutters/Knives: Specialized cutting tools are attached to the shafts. They can be configured in various ways depending on the desired output size and the type of material being shredded.

Drive System: A powerful motor or hydraulic system powers the shredder, providing the necessary torque to turn the shafts and cut through tough rubber.

Frame and Housing: A robust frame and protective housing enclose the shredding mechanism to ensure safety and prevent debris from flying out.

Working Principle and Application

Operation:

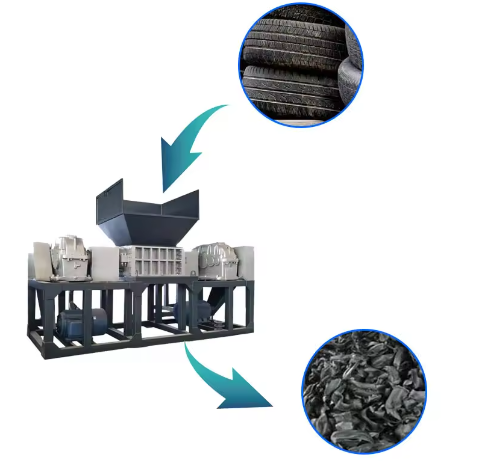

Feeding: Whole or pre-cut tires are fed into the shredder through an inlet hopper.
Shredding: As the tires enter the shredding chamber, the rotating cutters shear and tear the rubber, reducing it to smaller pieces.
Output: The shredded tire pieces fall out of the machine through a discharge opening. The size of the output can be controlled by adjusting the gap between the cutters or using a screen to filter the shredded material.

shredder picture.png

Parameters

Model	600	800	1000	1200	1400	1600	1800
Motor(kw)	11*2	18.5*2	35*2	45*2	55*2	75*2	110*2
Reducer	P6-P7	P7-P8	P8-P10	P10-P12	P11-P13	P12-P16	P14-P16
Siemens or other motors, planetary reducers or other reducers can be customized according to customer requirements
Rotation Speed	8-20rmp	8-20rmp	8-15rmp	8-15rmp	8-15rmp	8-12rmp	8-12rmp
Blades Diameter	220-320	260-320	260-400	400-500	400-500	500	500
Blades material	The material of the blades (55sicr, 5crsi, 9crsi, skd11, m6v, h13) can be customizedaccording to the customer's actual usage
Feeding Size	1200*900mm	1400*1000mm	1600*1200mm	1800*1300mm	2000*1300mm	2200*1700mm	2400*2000mm
The size and appearance of the feeding hopper can be customized according to thecustomer's feeding situation
Weight(kg)	1800	2500	3700	5500	7500	9500	13000
