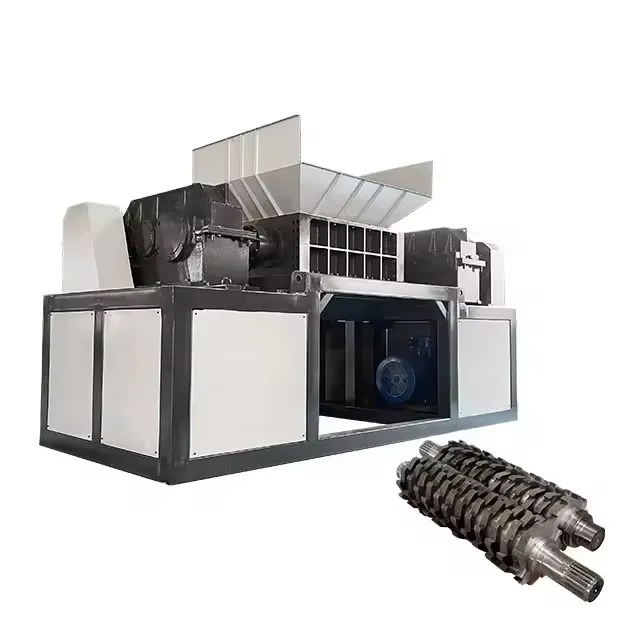

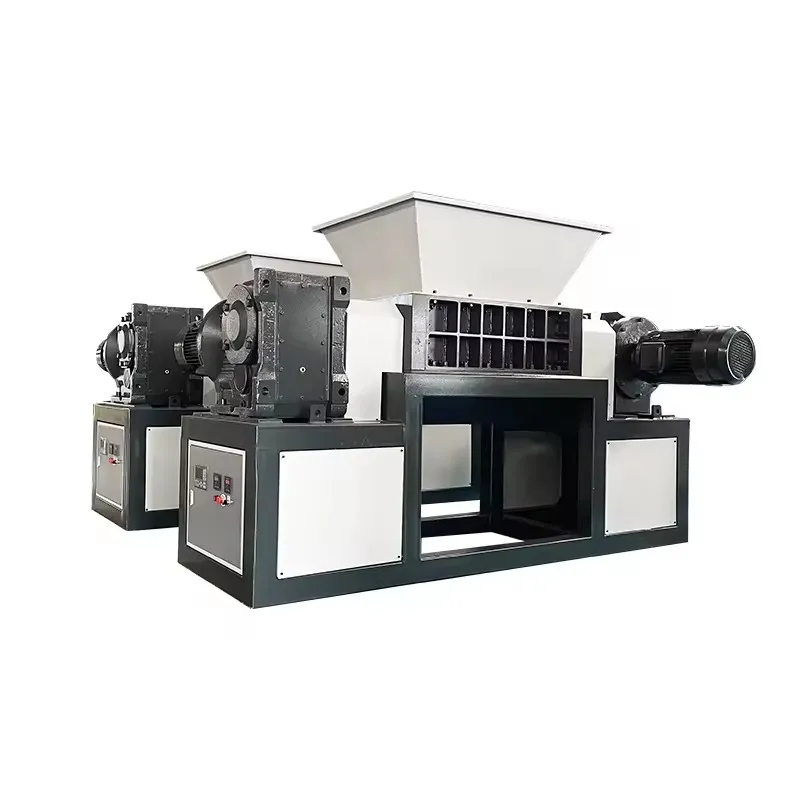

Crop straw double shaft shredder

Production Capacity:

1000-200000kg per hour capacity

Applicable Industries:

Agriculture

Power:

90kw

Core Components:

shaft, blades, motor

Place of Origin:

Henan, China

A crop straw double shaft shredder is a specialized piece of equipment designed to efficiently reduce the size of crop straw and other agricultural residues. This type of shredder is particularly useful in agriculture, biomass energy production, and waste management industries. Here’s an introduction to the key aspects of a crop straw double shaft shredder

Email: sales@zchmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

Key Components and Features:

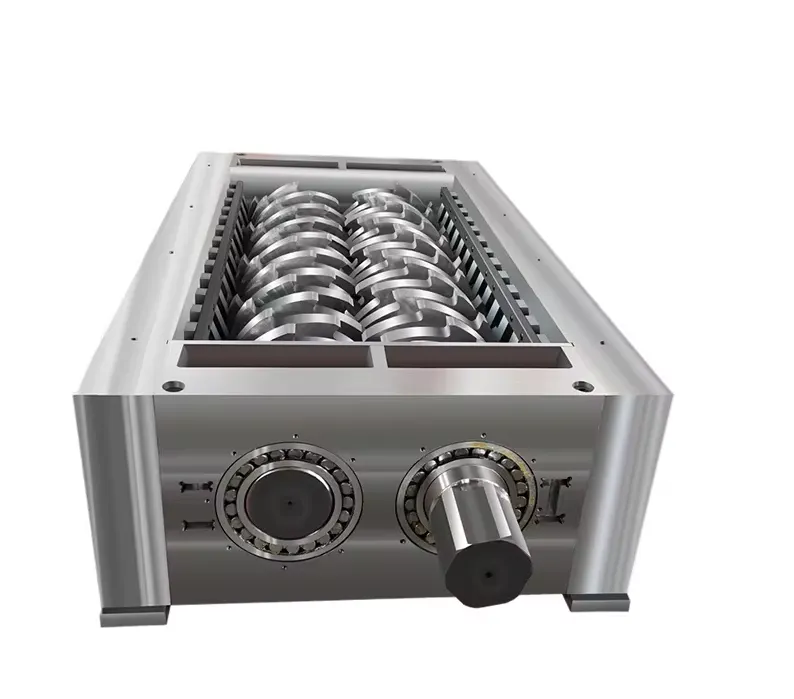

Heavy-Duty Double Shaft Design: The shredder features two rotating shafts with interlocking knives or blades that shear and tear the straw as it passes through the shredding chamber.
Robust Construction: Made from high-strength steel and durable materials to withstand the rigors of continuous operation and heavy loads.
Adjustable Output Size: Screens or grates are used to control the size of the shredded output. The material is continuously shredded until it passes through the screen openings.
High Throughput Capacity: Capable of processing large volumes of straw efficiently and quickly.
Low-Speed High-Torque Operation: Operates at a lower speed but with higher torque, which is ideal for shredding tough and fibrous materials like straw.
Safety Features: Includes safety interlocks, emergency stop buttons, and other protective measures to ensure safe operation.
Easy Maintenance: Designed for easy access to internal components for regular cleaning and maintenance.
Customizable Configurations: Can be customized with various options such as different blade designs, motor sizes, and additional features to suit specific application requirements.


Characteristics

Efficient Processing

Reduced Transportation Costs

Environmental Benefits

Economic Value

Working Principle and Application

Applications:

Biomass Energy Production: Shredded straw can be used as a feedstock for bioenergy plants to produce electricity or heat.
Livestock Feed: Reduced-size straw can be mixed with other ingredients to create livestock feed.
Composting: Shredded straw accelerates the composting process by increasing the surface area of the material.
Soil Amendment: Used as a soil amendment to improve soil structure and nutrient content.
Volume Reduction: Reduces the bulk of straw for easier storage and transportation.

Benefits:

Efficient Processing: Quickly processes large volumes of straw into smaller, more manageable pieces.
Reduced Transportation Costs: Smaller, denser bales take up less space, reducing transportation costs.
Environmental Benefits: Helps manage agricultural waste sustainably and reduces the need for burning straw, which can contribute to air pollution.
Economic Value: Adds value to agricultural waste by converting it into a usable resource.

Examples of Specific Models:

GDB Series Biomass Shredder: This model is designed to handle a variety of biomass materials, including crop straw. It has a high throughput capacity and can be adjusted for different output sizes.
Double Shaft Crop Straw Shredder SP428C: A compact yet powerful shredder suitable for continuous duty operation, capable of processing large volumes of crop straw.
Harden TD/TDH Series Heavy-Duty Double Shaft Shredder: This series is known for its powerful and stable performance, making it suitable for heavy-duty applications in the agricultural sector.

Parameters

Model	600	800	1000	1200	1400	1600	1800
Motor(kw)	11*2	18.5*2	35*2	45*2	55*2	75*2	110*2
Reducer	P6-P7	P7-P8	P8-P10	P10-P12	P11-P13	P12-P16	P14-P16
Siemens or other motors, planetary reducers or other reducers can be customized according to customer requirements
Rotation Speed	8-20rmp	8-20rmp	8-15rmp	8-15rmp	8-15rmp	8-12rmp	8-12rmp
Blades Diameter	220-320	260-320	260-400	400-500	400-500	500	500
Blades material	The material of the blades (55sicr, 5crsi, 9crsi, skd11, m6v, h13) can be customizedaccording to the customer's actual usage
Feeding Size	1200*900mm	1400*1000mm	1600*1200mm	1800*1300mm	2000*1300mm	2200*1700mm	2400*2000mm
The size and appearance of the feeding hopper can be customized according to thecustomer's feeding situation
Weight(kg)	1800	2500	3700	5500	7500	9500	13000
