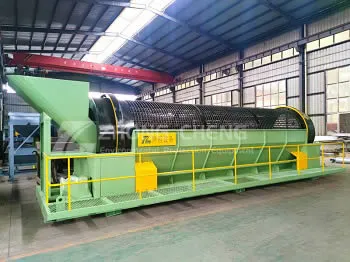

Trommel screen is a kind of machinery widely used in the sorting industry, and it screens materials by the different particles size. The barrel of the trommel screen can be divided into several sections with different screen hole sizes. The screen holes are arranged from small to large, and the screen hole diameters on each section are the same. Thus the screening accuracy is high. Drum screening equipment is mainly used for large and small stone classification, soil and stone powder separation, sand and stone separation, lump coal and coal powder separation, coal washing, large and small block classification, powder material separation, etc.
Trommel screen is consisting of five parts: drum, frame, hopper, reducer and motor.
After the material goes into the drum, it is screened along with the rotation of drum. At same time, the larger size materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.
Model | Screen Diameter(mm) | Screen Length(mm) | Mesh size(mm) | Max feeding size(mm) | Capacity(t/h) | Power(kw) |
GTS0618 | 600 | 1800 | 2-80 | <300 | 0.5-2 | 1.1 |
GTS0824 | 800 | 2400 | 2-80 | <300 | 2-20 | 2.2 |
GTS1030 | 1000 | 3000 | 2-80 | <300 | 20-100 | 4 |
GTS1236 | 1200 | 3600 | 2-80 | <300 | 30-120 | 7.5 |
GTS1545 | 1500 | 4500 | 2-80 | <300 | 60-280 | 11 |
GTS1860 | 1800 | 6000 | 2-80 | <300 | 80-350 | 22 |
