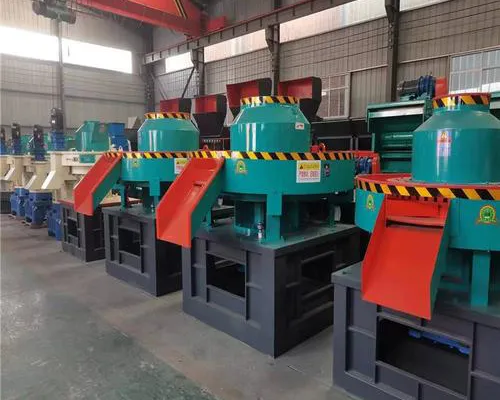

RDF Waste Briquette Machine Overview

1). RDF waste briquette machine is a material energy pretreatment equipment, which mainly uses agricultural and forestry waste such as wood chips, straw, rice husks, bark and other biomass as raw materials, and solidifies them into high-density pellet fuel through pretreatment and processing.

.

2). Working principle

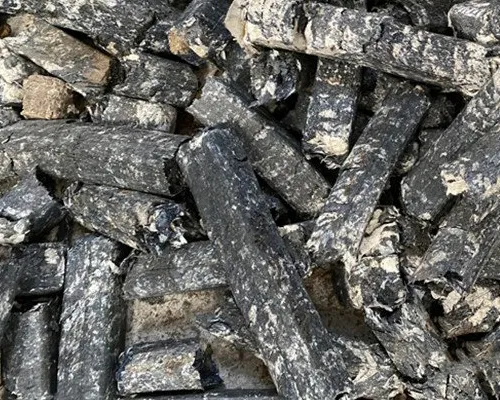

The biomass sawdust with a moisture content of 15%-25% and below 50mm, crop straw or forage briquette feed such as corn, wheat, rice, beans, peanuts, and yams, as well as biomass such as twigs and firewood, are pressed into rod-shaped solid particle biofuels with a cross-sectional size of 33-40mm and a length greater than 150mm. The briquette-formed particles have a high specific gravity and a small volume, which is convenient for storage and transportation. They are high-volatile solid fuels with a calorific value of up to 3200-4000 kcal. They are flammable, low in ash, and low in cost. They can replace fuels such as firewood, raw coal, and gas, and are widely used in heating, household stoves, boilers, biomass power plants, etc.

3). Performance advantages

1. High-pressure filtration, clean and smooth;

2. Independent lubrication, 24-hour full-automatic lubrication;

3. Independent discharging device to improve the forming rate of pelletizing;

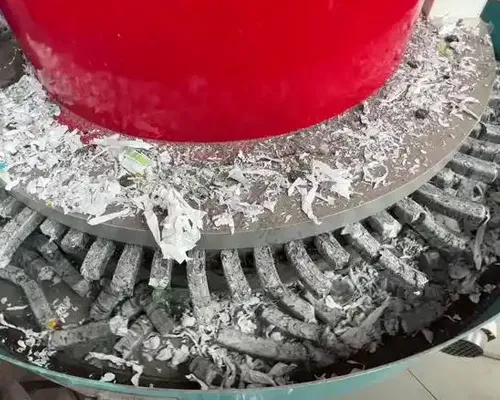

4. The mold is stationary, the pressure wheel rotates, the material is centrifugal, and evenly distributed around;

5. The mold is vertical, the material is fed vertically, directly in place, does not arch, and is easy to dissipate heat;

6. The mold has two layers, upper and lower, which can reduce costs and increase efficiency, and can be used for both, high yield and energy saving;

7. The ring mold has a vertical structure and is equipped with an air cooling system, which is conducive to heat dissipation and cooling in the pelletizing chamber;

The main drive of the vertical ring die pellet machine adopts high-precision gear transmission, and the output is about 20% higher than that of the belt drive.

4). Application case

Taking into account the comprehensive characteristics of domestic waste, the complete set of technical solutions for the resource utilization of urban domestic waste of Zhongcheng Environmental Protection Equipment Co., Ltd. can be used to sort and utilize urban domestic waste, and the remaining combustible materials such as wood, leather, clothes, rags, etc. can be made into RDF fuel rods for heating or power generation. The RDF fuel rods produced by the company have the characteristics of high calorific value, stable blending, easy transportation, easy storage, low secondary pollution and low emissions of toxic and carcinogenic substances such as PCDD/Fs. The birth of refuse-derived fuel (RDF) has brought vitality to waste energy and has become a new growth point in the field of waste utilization.

5).Model
