How to select and correctly use a Trommel screen

When selecting the appropriate trommel screen, several factors need to be considered:

Nature of the Screening Material: First and foremost, it's essential to identify what material you're screening and how many grades of finished particles are required. Different material properties may necessitate screens with varying materials and mesh sizes. For instance, for materials that are highly abrasive and wear-resistant, a more durable screen material like manganese steel welded mesh should be chosen; whereas for materials with high moisture content, screens with better anti-clogging properties, such as polyurethane rubber mesh, are more suitable.

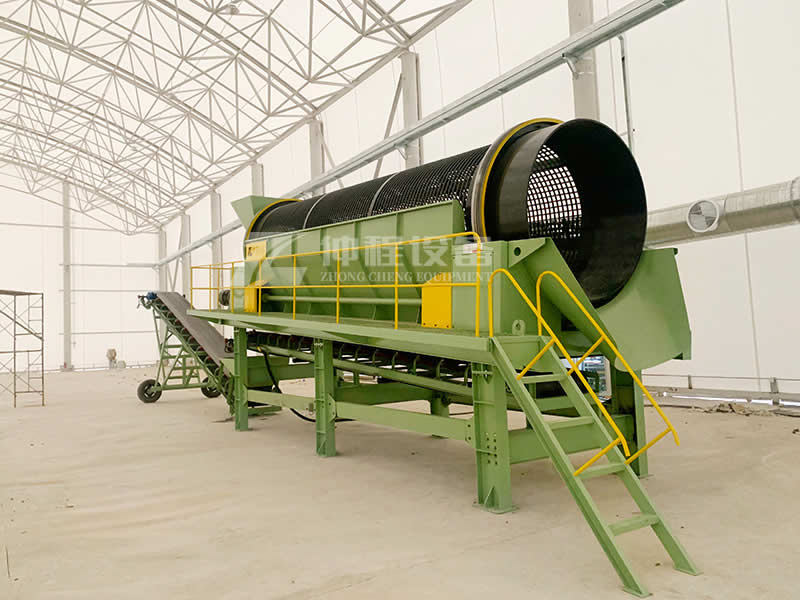

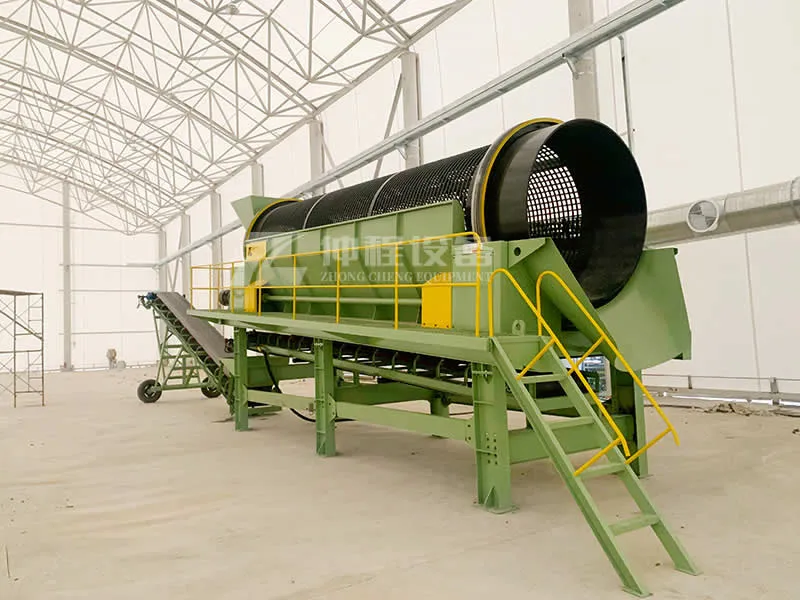

Zhongcheng Environmental Protection Equipment - Trommel screen

Processing Volume Requirements: Based on your production needs, determine the processing capacity of the Trommel screen. In scenarios where high processing volumes are required, opt for screens with higher open area percentages and better screening efficiency. Also, consider the service life of the screen, aiming to choose one that satisfies both processing volume requirements and ensures effective screening.

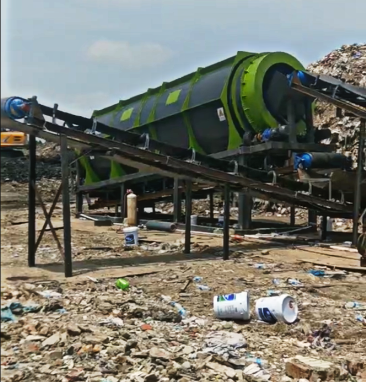

Site Conditions: If your site has multiple locations or requires mobility of equipment, a mobile drum screen could be an option. Mobile drum screens offer high maneuverability and can be adjusted according to changing production needs.

Equipment Parameters: Depending on the size, speed, and other parameters of the drum screen, select the appropriately sized screen mesh. The length, width, and aperture of the mesh should match the equipment specifications to ensure optimal screening performance.

Overall Cost: When choosing a screen mesh, consider not only its price but also its lifespan and maintenance costs. Sometimes, despite a higher upfront cost, a certain type of screen might have a longer life span and lower maintenance expenses, leading to a lower overall cost in the long run. Therefore, when selecting a screen mesh, it is crucial to weigh all factors to find the best value for money.

In summary, when selecting a drum screen and its mesh, comprehensively consider factors such as the nature of the screening material, processing volume requirements, site conditions, equipment parameters, and overall costs to ensure efficient screening results and productivity.

To improve the screening efficiency of a drum screen, consider the following approaches:

1. Choosing the Right Screen Mesh: Based on the characteristics and particle size requirements of the screening material, opt for a mesh made from the right material, with the appropriate aperture and dimensions. A well-suited mesh can enhance screening efficiency and reduce wear and frequency of replacement.

2. Maintaining Clean Screens: Regularly clean debris and blockages from the screens using high-pressure water jets or blowing devices. Concurrently, inspect the condition of the screens for wear and replace those that are severely worn.

3. Controlling Feed Speed and Volume: Ensure continuous and even feeding to avoid overloading the screen at once, which can decrease screening effectiveness. Reducing the feed particle size can also boost screening efficiency.

4. Adjusting Drum Rotation Speed: According to the material being screened and particle size requirements, adjust the rotation speed of the screening drum accordingly. Higher speeds generally lead to better screening outcomes, but also increase energy consumption. Aim to strike a balance between screening efficiency and energy usage.

5. Increasing Screening Area: By increasing the diameter and length of the screening drum, you can expand the screening area and thereby improve efficiency. However, it's important not to exceed the equipment's load-bearing capability.

6. Optimizing the Screening Process: Tailor the screening process based on production demands and material properties, possibly incorporating multi-level screening or combined screening methods. Streamlining the screening process can significantly enhance efficiency and cut down production costs.

7. Maintenance and Care: Routinely check and maintain the drum screen to guarantee smooth operation of all components. Lubricate bearings and transmission parts regularly and promptly replace parts showing severe wear to preserve the performance of the equipment.

By implementing these measures, the screening efficiency of the trommel screen can be enhanced, production costs reduced, and overall production benefits increased.

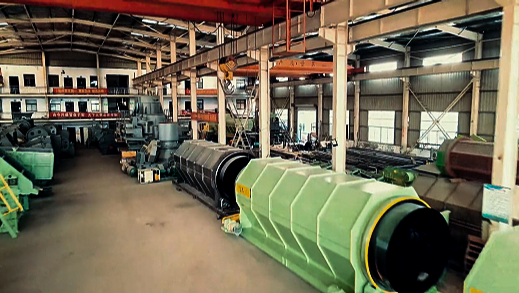

Zhengzhou Zhongcheng Environmental Protection Equipment Co., Ltd. is a strong manufacturer of environmental protection machinery and equipment.

Zhongcheng Company's drum screen product advantages:

Advantage One: The drum support adopts a whole-axis structure, ensuring smooth operation without vibration and low noise.

Advantage Two: Utilizing the principle of rolling conveyance, the friction coefficient is small, resulting in minimal wear and tear, and the screen holes are less prone to clogging.

Advantage Three: The drum body features an effective fully sealed design, preventing dust emission and avoiding environmental pollution.
