Cable and wire shredder

Cable and wire shredder is a device specially designed for processing cables and wires, which can shred these materials into smaller pieces for further recycling and processing. This equipment is very common in the recycling industry of waste wires and cables, and can effectively separate the metal and insulation materials in cables and wires, and improve the recycling rate of resources. The following is a detailed introduction to the cable and wire shredder:

1. Main components

Feed port: used to load cables and wires to be shredded.

Shredding chamber: two or more rotating shafts are installed inside, and knives or teeth are installed on the shafts to tear cables and wires by rotation.

Knives: usually made of high-hardness alloy steel with good wear resistance and impact resistance.

Drive system: provides power to the shredding shaft, usually composed of an electric motor or hydraulic system.

Screen/grid: controls the size of the shredded product, and only fragments that meet the size requirements can pass through.

Control system: includes safety functions such as start/stop button, emergency stop button, overload protection, etc.

Collection system: the shredded material will be collected in a designated container or conveyed by a conveyor belt after passing through the screen.

2. Working Principle

Feeding: Feed cables and wires into the shredder through the feed port.

Shredding: When cables and wires enter the shredding chamber, the knives on two or more rotating shafts tear them into smaller pieces.

Size Control: The shredded cable and wire fragments pass through the screen or grid at the bottom, and the fragments that do not meet the size requirements will continue to be shredded in the chamber until the size requirements are met.

Collection: The fragments that meet the size requirements are collected after passing through the screen for further processing or directly used as recycled materials.

3. Main Features

Efficient processing: Ability to quickly process large quantities of cables and wires.

Strong adaptability: Suitable for many types of cables and wires, including those with metal cores and insulation layers.

Good durability: Made of high-strength materials, it can operate stably for a long time.

Easy maintenance: Designed for easy regular cleaning and replacement of knives.

Safe and reliable: Equipped with safety protection devices such as emergency stop button, overload protection, etc.

4. Scope of application

Waste cables: Such as power cables, communication cables, etc.

Waste wires: such as household wires, industrial wires, etc.

Electronic waste: such as wires and cables in waste electrical appliances.

Industrial waste: such as wire and cable waste generated during factory production.

5. Reuse methods

Shredded cables and wires can be used in a variety of reuse methods:

Metal recovery: metal cores such as copper and aluminum are separated by magnetic separation or other physical methods for reprocessing.

Insulation material recovery: insulation layer materials can be used to make new insulation materials or as other industrial raw materials.

Energy recovery: after proper treatment, it can be used as an alternative fuel in industrial furnaces such as cement kilns.

6. Precautions for use

Pretreatment: Before shredding, try to remove large pieces of metal or other hard foreign matter in cables and wires to avoid damage to the cutter.

Size control: Select the appropriate mesh aperture according to the end use to obtain the desired shredded product size.

Maintenance: Check the wear of the cutter regularly and replace the severely worn cutter in time. At the same time, keep the shredding chamber clean to avoid dust accumulation or blockage.

7. Considerations when choosing a shredder

Processing capacity: Choose the right model based on the amount of cables and wires that need to be processed.

Output size: Determine the size of the shredded product required based on subsequent processing or application requirements.

Energy consumption and efficiency: Evaluate the energy consumption level and working efficiency of the shredder.

Safety performance: Ensure that the shredder meets relevant safety standards.

Maintenance cost: Consider the wear resistance and replacement frequency of the knives, as well as the maintenance cost of the overall equipment.

8. Example models

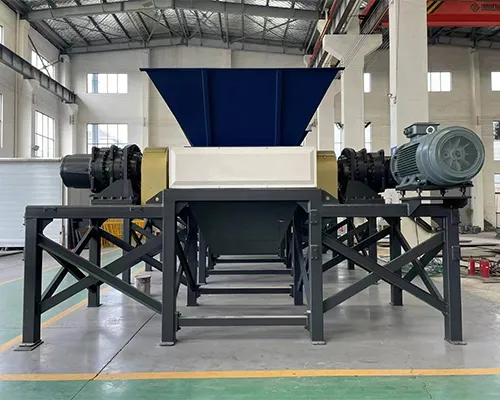

Heavy-duty dual-shaft shredder: Suitable for processing large cables and wires, such as power cables.

Portable shredder: Small in size and easy to move, suitable for small recycling stations or on-site operations.

Multi-function shredder: In addition to shredding cables and wires, it can also process other types of waste materials, such as plastics, wood, etc.

Environmental significance

Cable and wire shredders not only help reduce the volume of waste, facilitate transportation and further processing, but also increase the reuse rate of resources and promote a circular economy. By separating the metal and insulation materials in cables and wires, the demand for virgin resources can be reduced, energy consumption can be reduced, and the accumulation of waste can be reduced.

If you have specific cable and wire shredding needs or would like more information, please let me know the specific application scenario and goals and I can provide more detailed advice.
