High Capacity Domestic Waste RDF Biomass Briquette Machine

1).Introduction:

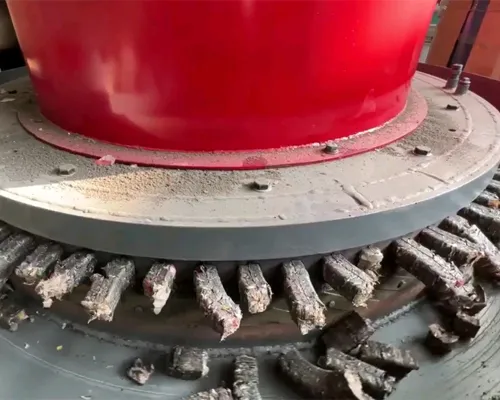

RDF Biomass Briquette Machine is one equipment which use fiber materials like smashed straw (within 50mm) or sawdust with moisture 12-25% as raw materials. By spindle rotates to drive the pressure roller to rotate, the machine produce centrifugal force to press the material from the die hole. The machine produce wood briquette with output size of 30mm.

2).Advantages:
1. Easy to operate, convenient to use, high automation, less labor and high efficiency.

2. Adopt double roller structure --- main shaft forcing evenly, machine running smoothly, reduce power consumption.
3. Die and roller are made of special alloy material, wear-resistant, pressure resistant, high temperature resistant, can continuous work without deformation, service life is 3-4 times than original ones.
4. The equipment adopts full automatic oil filling mode. The whole time supplies oil regularly, saving energy, time and greatly improving the service life.
5. Equipment for a wide range of materials: crop straw, sawdust and other fiber agricultural and forestry waste.

Biomass compression molding equipment is a special equipment for extrusion of crop straw (mainly corn straw), branches, grass, wood chips, shavings and other stalk biomass raw materials into blocks.

4).Machine Composition:

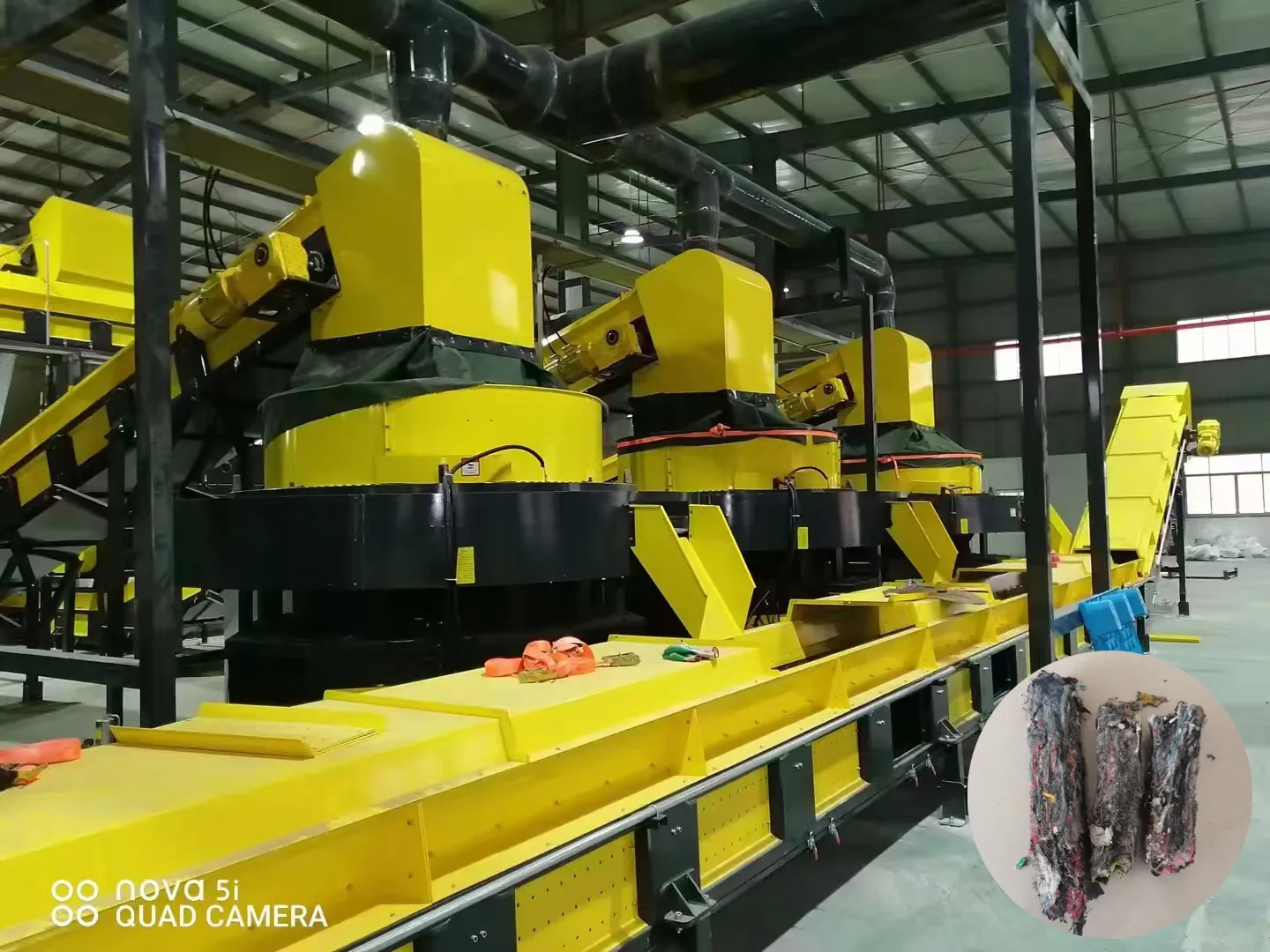

The rdf biomass briquette machine is composed of feeding conveyor, compressor and discharging machine. The compressor is composed of frame, motor, feed port, transmission system, press roll, ring die, electric heating ring, discharge port and other parts.

5).Raw Materials:

The raw materials for making briquette can be, sawdust, rice husk, peanut shell,seed shell, palm fiber, corn straw, alfalfa, hay, grass, animal manure,domestic garbage and other biomass waste material, RDF,plastic waste, waste solid waste, biomass, wood sawdust,garbage derived fuel,waste paper,cow dung manure,paper,waste clothes.etc.

6).Application:

The rdf biomass briquette machine can press agricultural and forestry wastes into briquettes by high-speed compression. Increase the proportion of biomass, extend the burning time. The finished briquette shape can be shape or round.etc, which is easy to storage and transportation. Widely used for heating stove,power plant and biogas fermentation.

7).Parameter
