With the acceleration of urbanization, the problem of garbage disposal has become increasingly prominent. Efficient and precise garbage sorting equipment has become an important tool to solve this problem. Among them, the drum screen, as an advanced sorting technology, plays an important role in improving the efficiency and accuracy of garbage classification.

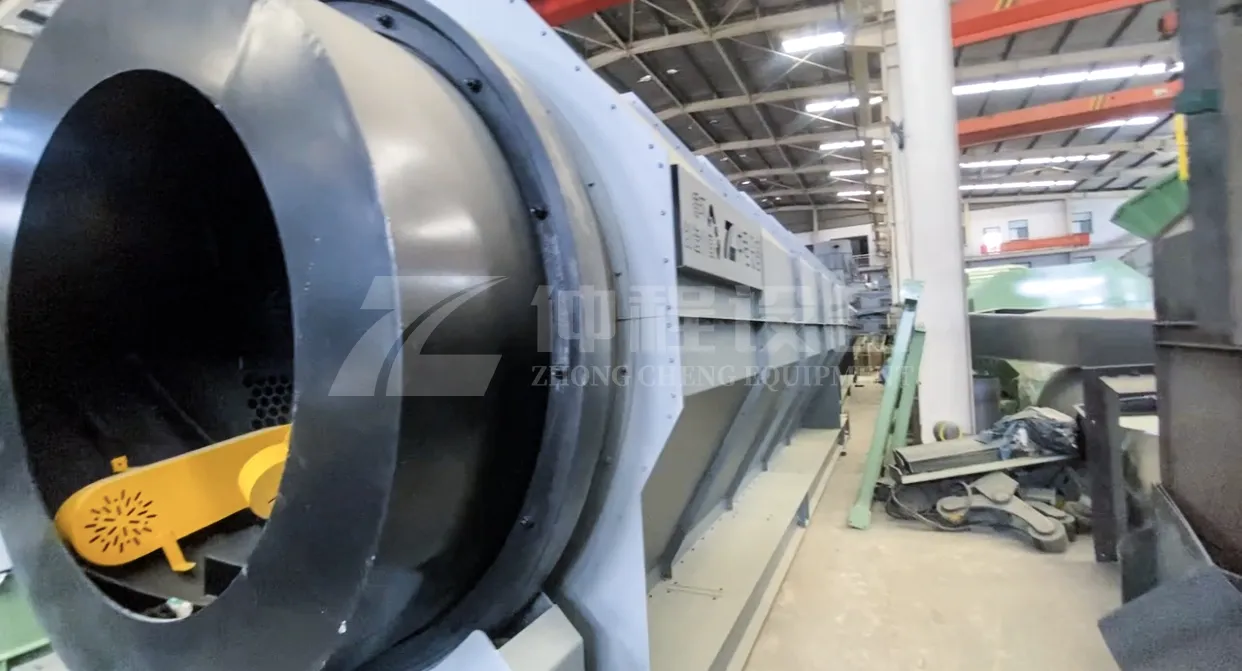

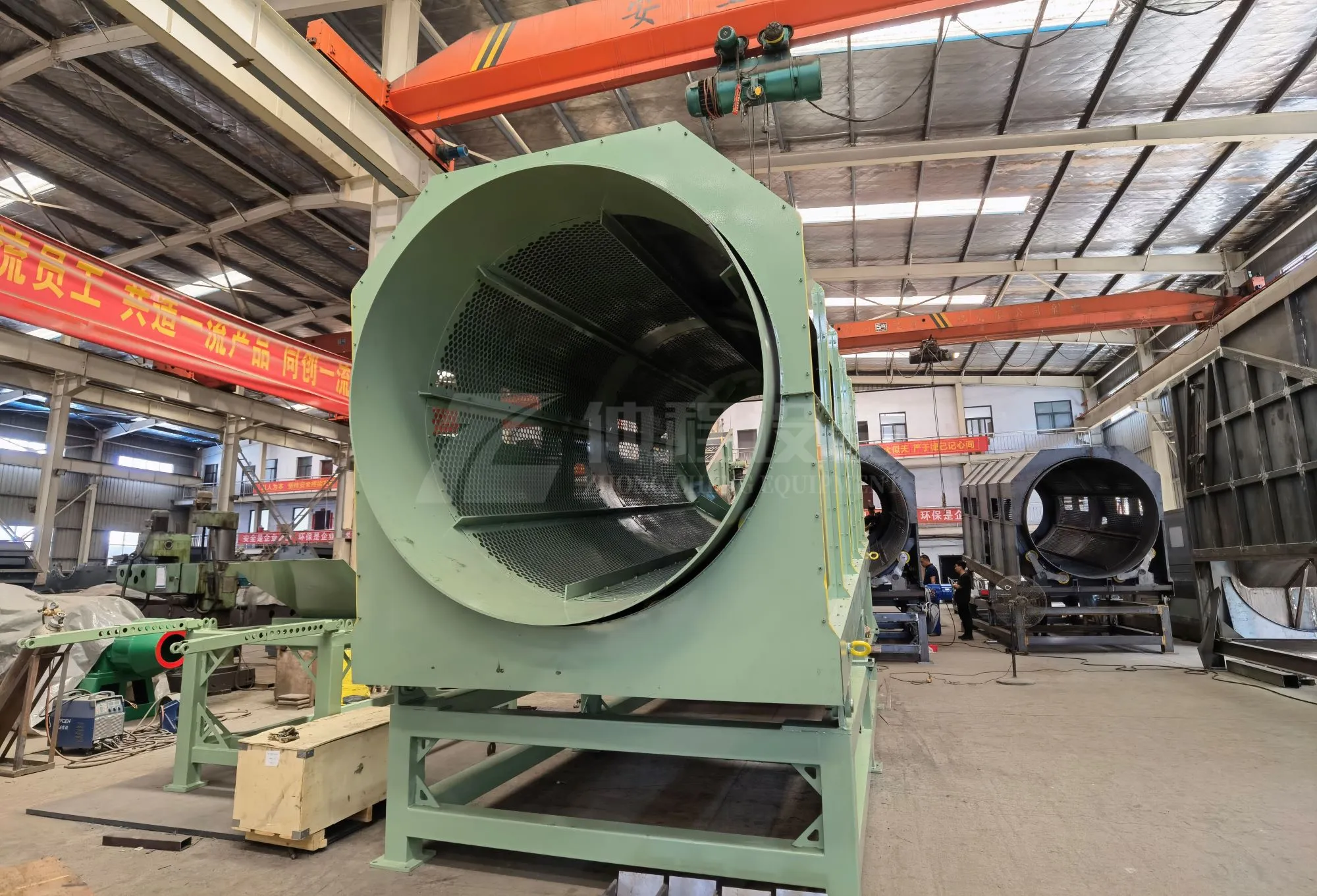

The drum screen launched by Zhongcheng Equipment has attracted widespread attention for its unique design and superior performance. This equipment effectively separates mixed waste through a rotating structure. During the working process, materials of different particle sizes, shapes and densities will be naturally sorted in the drum according to gravity and friction, thereby achieving one-time accurate classification of recyclable resources, hazardous waste and other types of waste.
First of all, the trommel screen has strong adaptability and can handle many types of solid waste, including domestic garbage, industrial residues, etc. At the same time, its internal structure has been optimized to make the material flow smoother, effectively reduce clogging and improve production efficiency. In addition, the equipment is equipped with an intelligent control system that can monitor the operating status in real time and automatically adjust parameters to achieve the best results, greatly reducing the need for manual intervention.
Secondly, high efficiency is a highlight of this product. Compared with traditional manual or simple mechanical methods, the use of trommel screens can minimize labor costs and increase the overall operating speed. According to statistics, by introducing this new type of equipment, some companies have successfully shortened manual work that originally took hours to a few minutes, completing tasks quickly and with high quality, and contributing to environmental protection.
Finally, it also plays a positive role in promoting the development of circular economy. When more recyclable resources are identified and reused in a timely manner, it not only reduces the burden on landfills, but also provides a steady stream of fresh "blood" to the renewable resource industry chain. Therefore, the introduction of efficient and refined management concepts, such as the use of Zhongcheng's trommel screens, is undoubtedly an important step towards a greener future under the current environmental protection background.
Trommel screen parameter:
Model | Length Range | Segment No. | Aperture Size | Power (Kw) | Inclined Angle | Max. Material Size | Rotating Speed(rpm) |
ZCφ600 | 2-4m | 1-2 | ≤30mm | 2.2-3 | 0-7° | 60mm | 12-18 |
ZCφ800 | 2-5m | 1-3 | ≤50mm | 3-5.5 | 0-7° | 100mm | 12-18 |
ZCφ1000 | 2-6m | 1-4 | ≤100mm | 4-11 | 0-7° | 150mm | 10-18 |
ZCφ1200 | 3-8m | 1-4 | ≤150mm | 5.5-18.5 | 0-7° | 200mm | 9-15 |
ZCφ1500 | 3-10m | 1-5 | ≤200mm | 7.5-22 | 0-7° | 250mm | 9-15 |
ZCφ1800 | 4-12m | 1-5 | ≤220mm | 7.5-22 | 0-7° | 270mm | 8-15 |
