With the acceleration of urbanization, the problem of urban garbage disposal is becoming increasingly severe. In order to effectively respond to this challenge, Zhongcheng Factory has developed and produced an efficient urban garbage sorting machine drum screen, contributing to the environmental protection cause.

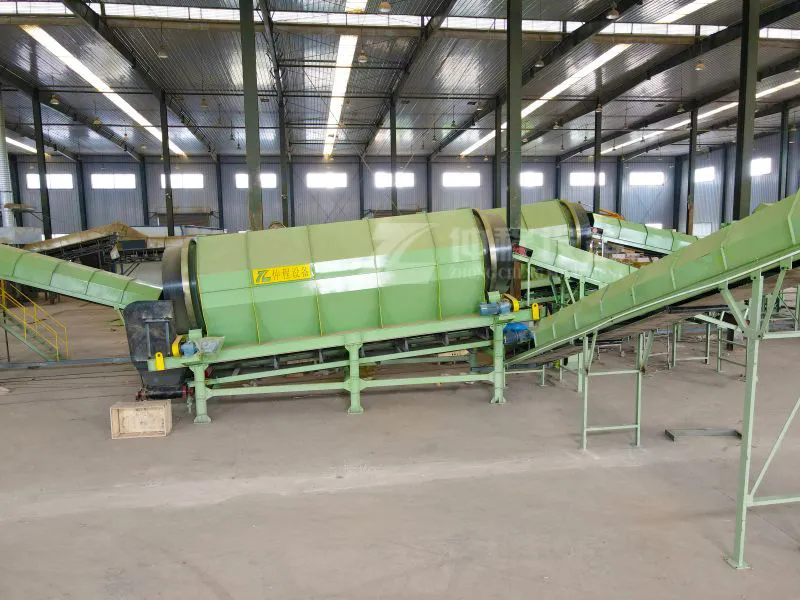

Working principle of drum screen
Zhongcheng Factory's urban garbage sorting machine drum screen adopts advanced rolling screening technology. Through the rotation of the drum, different substances in the garbage are effectively separated. The equipment has the characteristics of high screening efficiency and strong processing capacity. It can quickly classify recyclables, organic matter and inorganic matter in the garbage, providing strong support for subsequent resource utilization and harmless treatment.
Technical strength of Zhongcheng Factory
As a professional environmental protection equipment manufacturer, Zhongcheng Factory has rich production experience and strong technical strength. In the research and development and production process of drum screens, the factory strictly follows relevant national standards and specifications to ensure that the quality and performance of the products are optimal. At the same time, the factory also has a professional after-sales service team that can provide customers with timely and thoughtful technical support and maintenance services.
Contribution to environmental protection
Zhongcheng Factory's urban garbage sorting machine drum screen not only improves the efficiency and quality of garbage disposal, but also makes positive contributions to the sustainable development of the city. Through the wide application of this equipment, it can effectively reduce the environmental pollution caused by landfill and incineration of garbage, promote the recycling of resources and the green development of the economy.
Looking to the future, Zhongcheng Factory will continue to be committed to the research and development and production of environmental protection equipment, and contribute more wisdom and strength to create a better urban environment.
Drum screen parameter:
UNIT | ZC 20 | ZC 25 | ZC 30 | |
MOTOR | kW | 11+11 | 15 + 15 | 18,5 + 18,5 |
ROTARY SCREEN LENGTH | m | 6 | 12 | 12 |
TOTAL LENGTH | m | 7,5 | 13,5 | 13,5 |
ROTARY SCREEN DIAMETER | mm | Ø 2000 | Ø 2500 | Ø 2500 |
SCREEN SIZE HOLE | mm | Ø 20 – Ø 350 | Ø 20 – Ø 350 | 20 – Ø 350 |
CAPACITY | t/h | 7,0 – 10,0 | 15,0 – 20,0 | 25,0 – 45,0 |
ROTATION SPEED | dev/dk-rpm | 0,0 – 14,0 | 0,0 – 14,0 | 0,0 – 14,0 |
ROTATION SPEED | dev/dk-rpm | 10,0 – 12,0 | 10,0 – 12,0 | 10,0 – 12,0 |
WEIGHT | ton |
