The municipal solid waste sorting drum screen is a mid-range equipment that plays an important role in modern society. This technology uses rotating drums and holes of different sizes to effectively sort domestic waste, thereby improving waste treatment efficiency and reducing environmental pollution.
First of all, the output of municipal solid waste is huge and diverse, which is easy to cause resource waste and environmental problems without proper treatment measures. The use of a sorting drum screen can sort out various types of mixed waste according to characteristics such as size and density, which is conducive to subsequent recycling or safe disposal.
Secondly, the equipment has an automatic operation function and can adjust parameters as needed to meet the needs of waste treatment of different types and scales. This reduces manpower input, improves work efficiency, and avoids problems caused by misjudgment or missed inspections due to human factors.
In addition, under the concept of promoting sustainable development, "reduction" and "resource utilization" have become one of the mainstream trends in current society. The municipal solid waste sorting drum screen is one of the best examples in this direction: by scientifically and accurately distinguishing and identifying every material thrown back to the "landfill", commonly known as "dry lake", these may be transformed into new products.

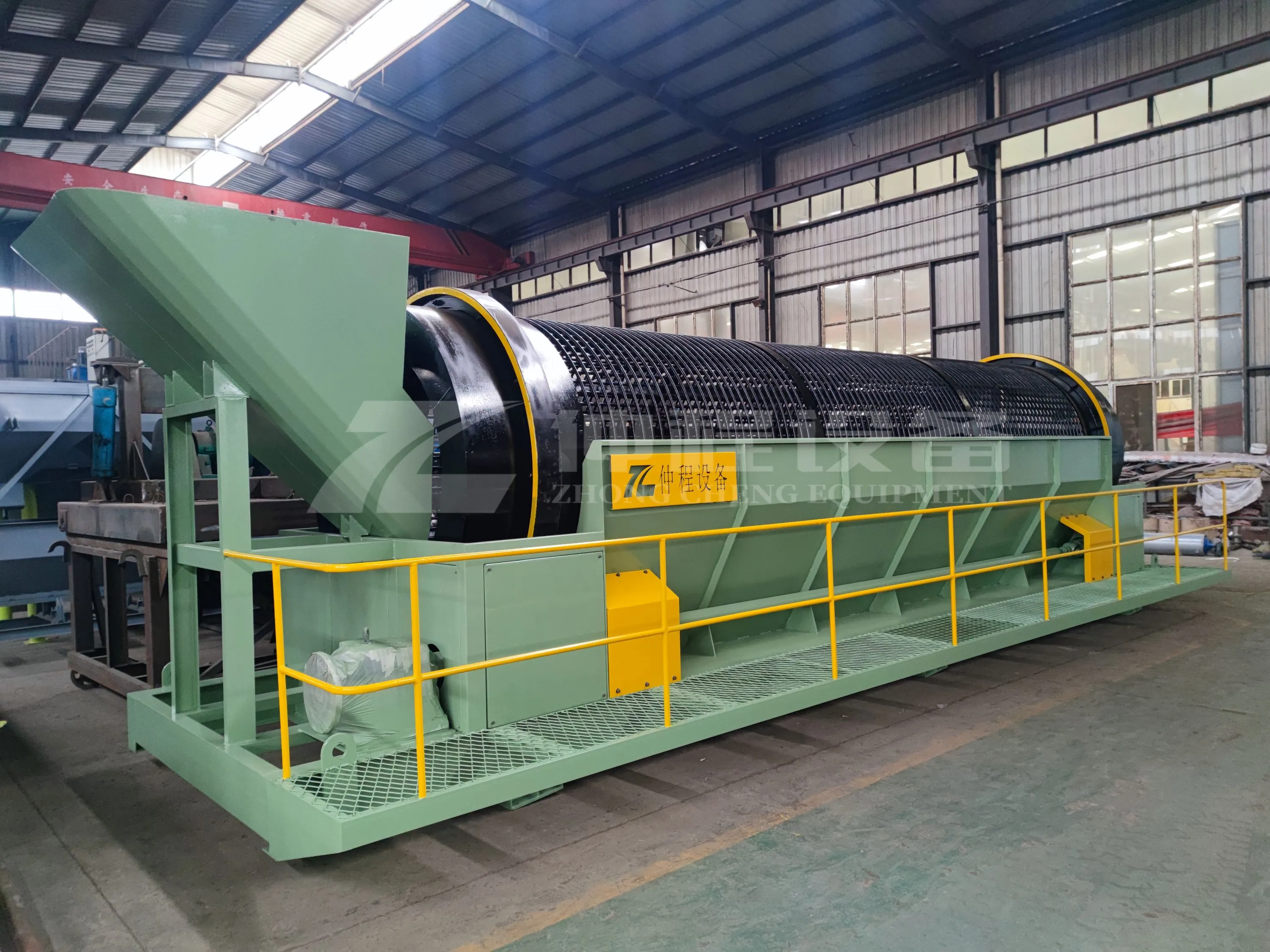

Trommel screen parameter:
UNIT | ZC 20 | ZC 25 | ZC 30 | |
MOTOR | kW | 11+11 | 15 + 15 | 18,5 + 18,5 |
ROTARY SCREEN LENGTH | m | 6 | 12 | 12 |
TOTAL LENGTH | m | 7,5 | 13,5 | 13,5 |
ROTARY SCREEN DIAMETER | mm | Ø 2000 | Ø 2500 | Ø 2500 |
SCREEN SIZE HOLE | mm | Ø 20 – Ø 350 | Ø 20 – Ø 350 | 20 – Ø 350 |
CAPACITY | t/h | 7,0 – 10,0 | 15,0 – 20,0 | 25,0 – 45,0 |
ROTATION SPEED | dev/dk-rpm | 0,0 – 14,0 | 0,0 – 14,0 | 0,0 – 14,0 |
ROTATION SPEED | dev/dk-rpm | 10,0 – 12,0 | 10,0 – 12,0 | 10,0 – 12,0 |
WEIGHT | ton |
