Bouncing Screen: The Efficient Solution for Particle Separation and Screening

Bouncing Screen Introduction

A bouncing screen, also known as a jumping screen or vibrating screen, is a piece of mechanical equipment used to separate mixtures of solid particles. It is widely applied in industries such as mining, agriculture, chemical processing, and food processing for grading, screening, and impurity removal.

Working principle：

Will bounce separator rotating sieve plate according to the different shape and appearance characteristics of garbage, garbage sorting to or undersize on the screen.

According to the different characteristics of the material, the waste is classified, and the plastic waste can be separated from the cardboard, waste paper and film.

Can also be applied to separate the light from cylindrical garbage bottles, cans substances, such as thin film.

According to the different speed of movement, the 3D shaped garbage will be bounced under the screen, while the 2D shaped garbage such as film and paper will be bounced onto the screen, so as to achieve the purpose of garbage classification.

The sorting accuracy can be adjusted by adjusting the Angle of the screen pan.

The bounce sorter is usually installed at the start of the automatic sorting line of the garbage collection system to improve the separation efficiency of the back-end separator.

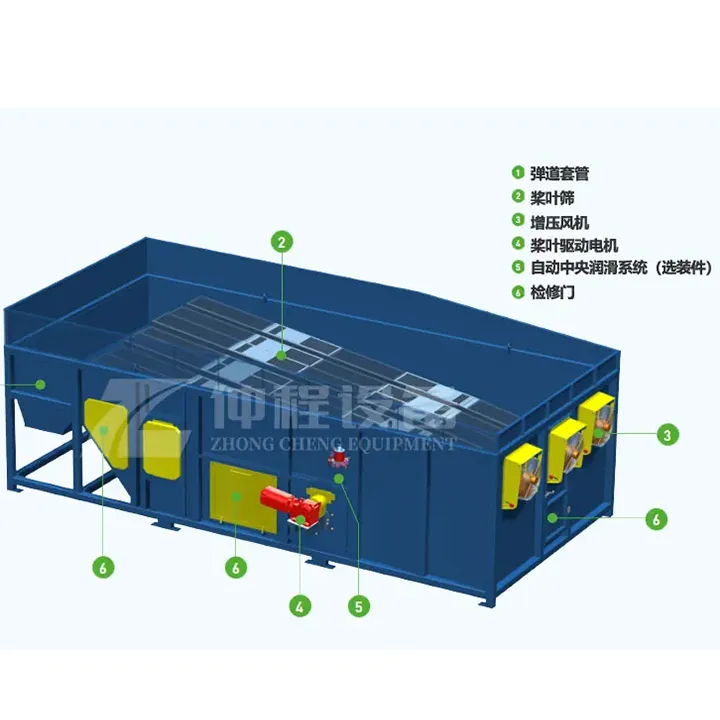

Structural Characteristics:

1. Screen Surface: Made from mesh materials with varying hole sizes, with material type and specifications chosen based on requirements.
2. Vibration Source: Typically consists of an electric motor equipped with eccentric blocks or other forms of excitation devices.
3. Support Structure: Ensures the stability of the screen body while allowing it to vibrate freely.

4. Adjustment Device: Can adjust the amplitude and frequency of vibration to accommodate different material characteristics and screening requirements.

Advantages:

• Good separation effect, capable of precisely separating particles of different sizes;
• Simple operation and easy maintenance;
• Strong adaptability, suitable for screening various types of materials;

• High production efficiency and large processing capacity.




  Model	TS-21	TS-25		TS-27	Remarks
  Screen width(mm)	2100	2500		2700	Can be customized
  Screen length(mm)	5000	5000		5000
  Motor power(kw)	7.5	7.5		11
  Screen plate qty(pcs)	6	6		8
  Screen hole size(mm)	20-100
  Capacity(m³/h)	10-30	20-40	30-50
  EXW(USD)	43,500	58,000	72,500

Application Fields:

• Mining: Such as coal, ore screening, and grading;
• Agriculture: Such as grain cleaning, seed screening;
• Chemical Industry: Such as powder material grading;
• Food Industry: Such as flour, sugar powder, and other fine material screening.
