Trommel Screens: Versatile Machines for Efficient Material Separation

Trommel Screens: Versatile Machines for Efficient Material Separation

Trommel screens are indispensable tools in various industries, known for their versatility in handling a wide range of materials and capacities. These mechanical screening machines are designed to separate different types of materials, making them essential for applications in recycling, mining, agriculture, and waste management. The trommel screen's efficiency lies in its unique construction and operation, which can be tailored to specific needs. Let's dive deeper into the intricacies of trommel screens, their components, and how they function to achieve effective material separation.

3.

Understanding the Trommel Screen Structure

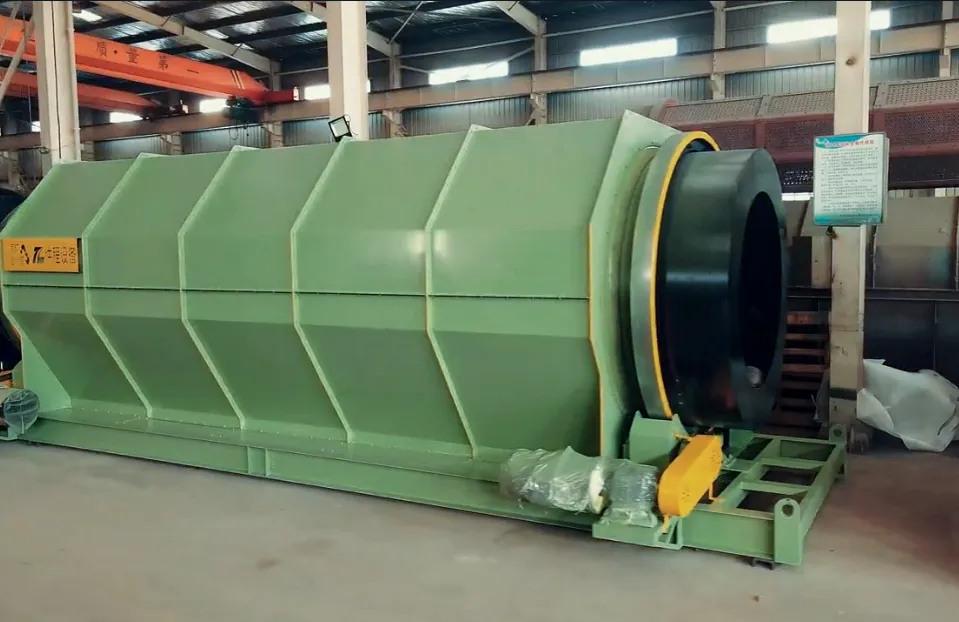

At its core, a trommel screen consists of several key components: a perforated cylindrical drum, a motor, a reduction unit, a screen frame, and a sealing cover. The cylindrical drum is the most critical part, typically elevated at an angle at the feed end to facilitate the movement of materials. This inclination allows gravity to assist in the material flow, enhancing the screening process.

1.The Perforated Cylindrical Drum

The drum's design is crucial for the trommel screen's functionality. The perforations in the drum are strategically sized to ensure that only materials smaller than the apertures pass through, while larger materials continue to the drum's exit. These perforations can be customized to match the specific requirements of the materials being processed, providing flexibility in application. For example, in a recycling facility, the drum might have different perforation sizes than those used in a mining operation.

2.Motor and Reduction Unit

The motor and reduction unit are responsible for the rotation of the drum. The motor provides the necessary power, while the reduction unit adjusts the speed of rotation to optimal levels for material separation. This combination ensures that the drum rotates at a consistent speed, allowing materials to move steadily along the drum's length. The rotation speed can be adjusted based on the type of material and desired separation efficiency.

3.Screen Frame and Sealing Cover

The screen frame supports the drum and holds it in place during operation. It is designed to withstand the rigors of continuous use and the weight of the materials being processed. The sealing cover serves a dual purpose: it prevents dust and debris from escaping into the environment and protects the internal components from external contaminants. This is particularly important in industries such as waste management, where controlling dust and odor is essential for maintaining a safe and clean working environment.

The Screening Process

When materials are fed into the trommel screen at the elevated end, they begin their journey along the inclined rotating drum. The rotation causes the materials to jump and roll within the drum, promoting thorough separation. As the materials move forward, the smaller particles fall through the perforations, effectively separating from the larger items.

1.Material Movement and Separation

The unique movement within the drum is what sets trommel screens apart from other screening machines. The combination of gravity and rotation ensures that materials are constantly being agitated, which prevents clogging and promotes efficient separation. The undersized material, which is smaller than the screen apertures, passes through the perforations and is collected below the drum. The oversized material, unable to pass through the apertures, continues to move along the drum until it exits at the other end. This process is continuous, allowing for high throughput and efficient separation.

2.Adjustability and Customization

One of the significant advantages of trommel screens is their adjustability. The angle of the drum, the size of the perforations, and the speed of rotation can all be customized to meet specific requirements. This flexibility makes trommel screens suitable for a wide range of applications, from sorting compost and soil to separating valuable minerals in mining operations. By adjusting these parameters, operators can achieve the desired separation efficiency and handle varying material characteristics with ease.

Applications of Trommel Screens

Trommel screens are widely used across numerous industries due to their versatility and efficiency. Here are some notable applications:

1.Recycling Industry

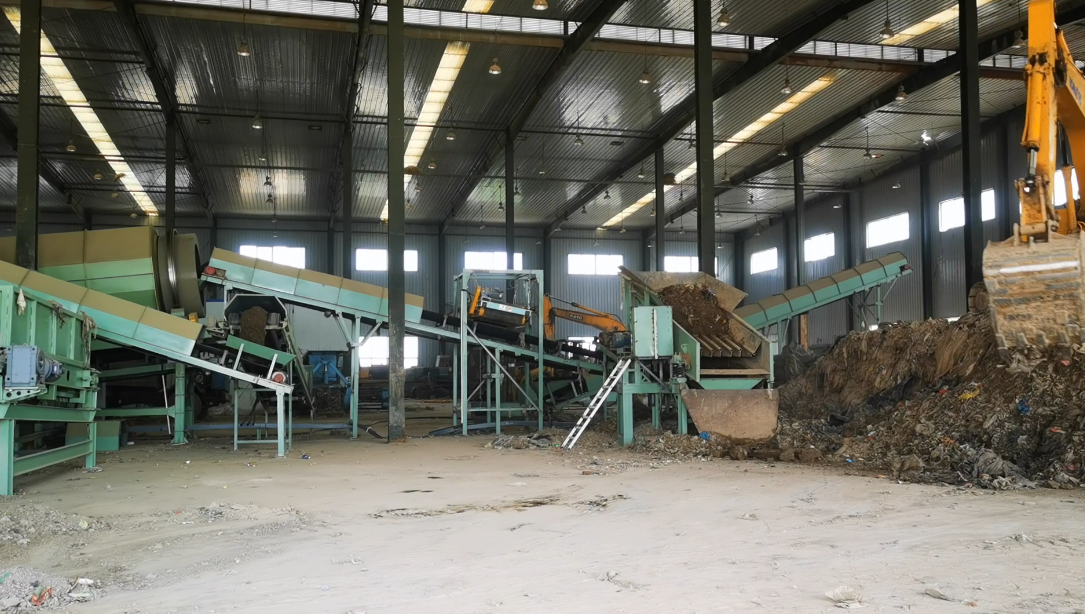

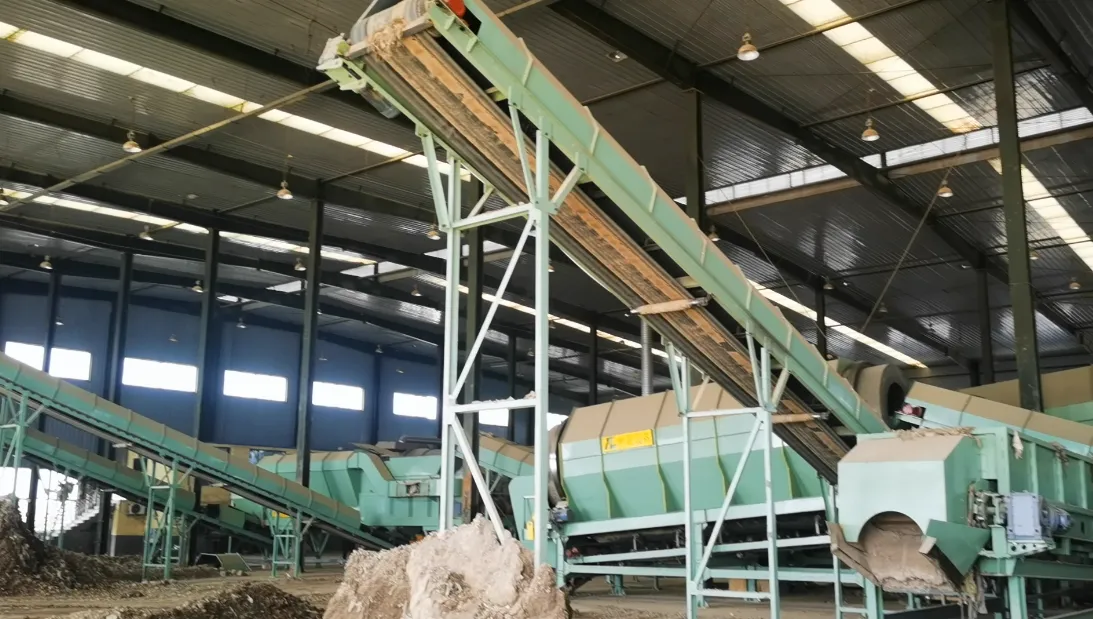

In recycling facilities, trommel screens are used to separate different types of waste materials. For instance, they can separate recyclable plastics from organic waste or sort metals from mixed waste streams. The ability to customize the drum's perforations allows for precise sorting, improving the quality of recycled materials and reducing contamination.

2.Mining and Quarrying

In the mining industry, trommel screens are employed to separate valuable minerals from waste rock. The robust construction of the screens allows them to handle abrasive materials and heavy loads, making them ideal for mining applications. By adjusting the screen's parameters, operators can ensure the efficient recovery of valuable resources while minimizing the processing of non-valuable materials.

4.Agriculture

In agricultural settings, trommel screens are used to process organic materials such as compost and soil. They help remove debris and large clumps, resulting in a finer and more uniform product. This is particularly useful in producing high-quality compost for use in gardening and farming.

5.Waste Management

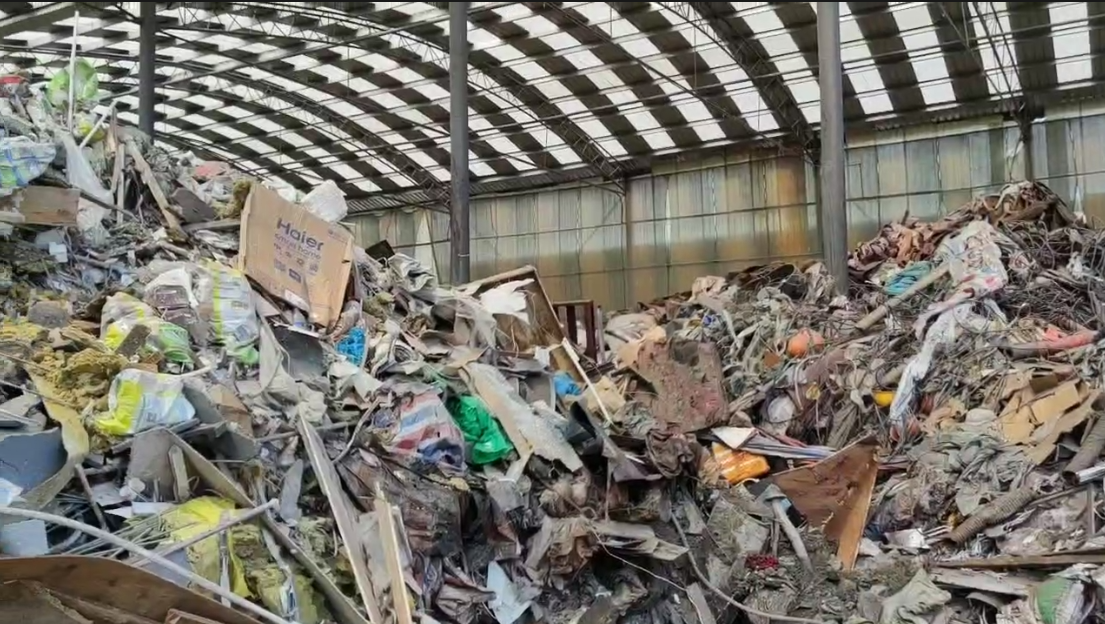

Trommel screens play a crucial role in waste management by separating different types of waste for further processing or disposal. They can be used to sort municipal solid waste, construction debris, and industrial waste. This separation process helps reduce the volume of waste sent to landfills and enhances the recovery of recyclable materials.

Advantages of Trommel Screens

Trommel screens offer several advantages that make them a preferred choice for material separation:

1.Efficiency

The continuous rotation and agitation of materials within the drum ensure efficient separation. Trommel screens can handle large volumes of material with high throughput, making them suitable for both small-scale and large-scale operations.

2.Durability

Constructed from robust materials, trommel screens are designed to withstand harsh operating conditions and heavy use. This durability translates to a longer lifespan and reduced maintenance costs.

3.Flexibility

The ability to customize the drum's angle, perforation size, and rotation speed provides flexibility in handling different types of materials and achieving desired separation outcomes. This adaptability makes trommel screens suitable for a wide range of applications.

4.Low Maintenance

Trommel screens are relatively low-maintenance compared to other screening machines. The simple design and minimal moving parts reduce the likelihood of mechanical failures and make maintenance tasks straightforward.

Conclusion

Trommel screens are versatile and efficient machines that play a vital role in various industries. Their ability to handle a wide range of materials and capacities, combined with their customizable features, makes them invaluable for material separation tasks. Whether in recycling, mining, agriculture, or waste management, trommel screens provide an effective solution for separating and processing materials, contributing to improved operational efficiency and sustainability.
