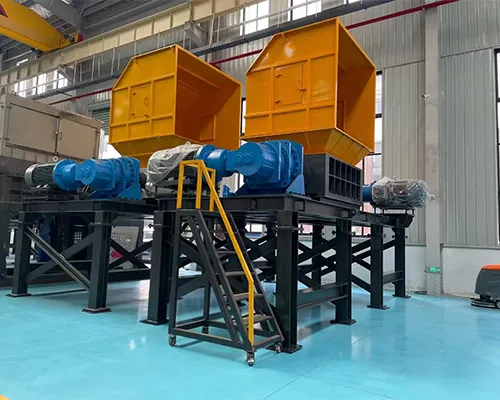

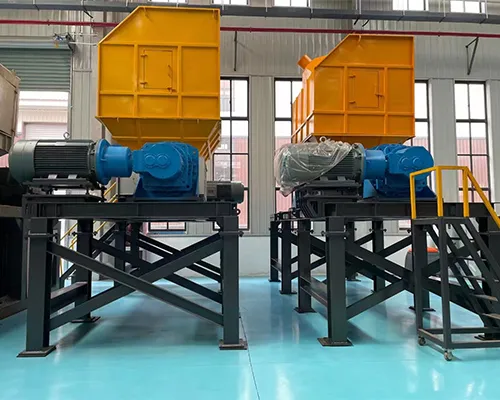

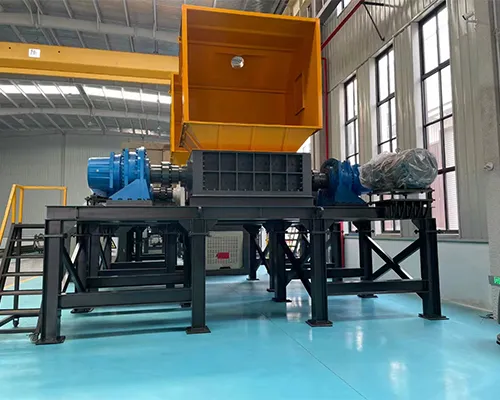

Rubber double-shaft shredder

The rubber double-shaft shredder is an important environmental protection equipment, which is widely used in the treatment and reuse of waste rubber. In order to ensure the performance and quality of the rubber double-shaft shredder, design specifications must be formulated. This article will elaborate on the design specifications of the rubber double-shaft shredder, including working conditions, structural parameters, material selection, processing accuracy requirements and other aspects.

Structural parameters

Equipment size: The equipment size should be determined according to production needs, the amount of waste to be processed and the production process. In the equipment design process, the dimensions such as height, length and width required by the equipment should be reasonably considered to ensure the stability and operability of the equipment.

Main component parameters: The main components of the rubber double-shaft shredder include the main shaft, sub-shaft, and knife holder. During the design process, it should be ensured that the size and structural parameters of the main shaft, sub-shaft, and knife holder can meet the requirements of effective grinding of rubber waste, and can maintain stable operation and component matching accuracy in the production process.

Knife cylinder parameters: The knife cylinder is one of the key components of the rubber double-shaft shredder. The size of the knife cylinder, including the diameter, length, thickness and other properties, should be designed according to the characteristics of the rubber waste and the requirements of the production and processing technology. In addition, it is also necessary to determine the number, shape, material and other parameters of the blades on the blade setter to ensure the ability to grind rubber waste. ,

Material selection

The rubber double-shaft shredder should use high-quality, durable and highly thermally stable materials to ensure that the equipment can maintain long-term stability and high efficiency during the crushing and processing process. Commonly used materials include steel and alloy materials.

The main components of the rubber double-shaft shredder (such as the main shaft, secondary shaft, gear, knife holder, etc.) should use steel with high

strength and wear resistance. The manufacturing materials of the blades and blade setters should be selected from alloy materials with high wear resistance and not easy to deform to ensure long-term stability and high efficiency during the operation of the machine.

Processing accuracy requirements

1. In the process of manufacturing the rubber double-shaft shredder, the thickness, length, width and other dimensional accuracy of the main components should be ensured to ensure the accuracy of the equipment.

2. The keel treatment should be carried out on the matching parts of the rubber double-shaft shredder to ensure that the installation accuracy of each component meets the requirements after the equipment is completed.

3. Strictly control the parameters such as the tooth gap and speed during the operation of the equipment to ensure that the rubber waste achieves the expected grinding effect during the processing.

In summary, the design of the rubber double-shaft shredder needs to follow certain specifications and standards to ensure that such equipment can efficiently and environmentally friendly complete the processing and reuse of rubber waste. In the production process, new design solutions and technological innovations should be actively adopted to further improve the performance and quality of the rubber double-shaft shredder.
