Screening Separators
Date:2024-11-27
View: Point

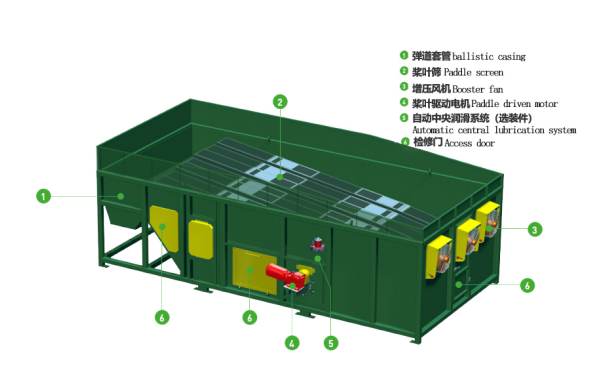

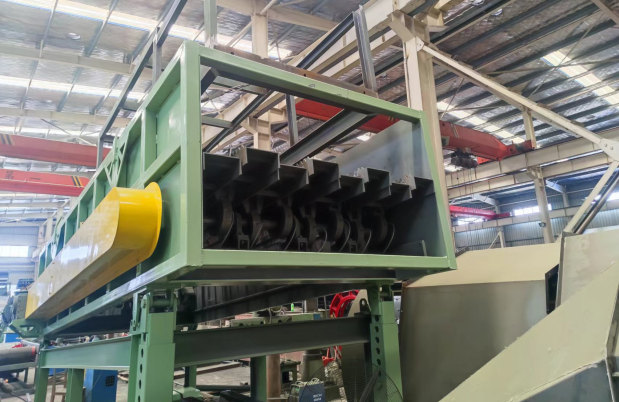

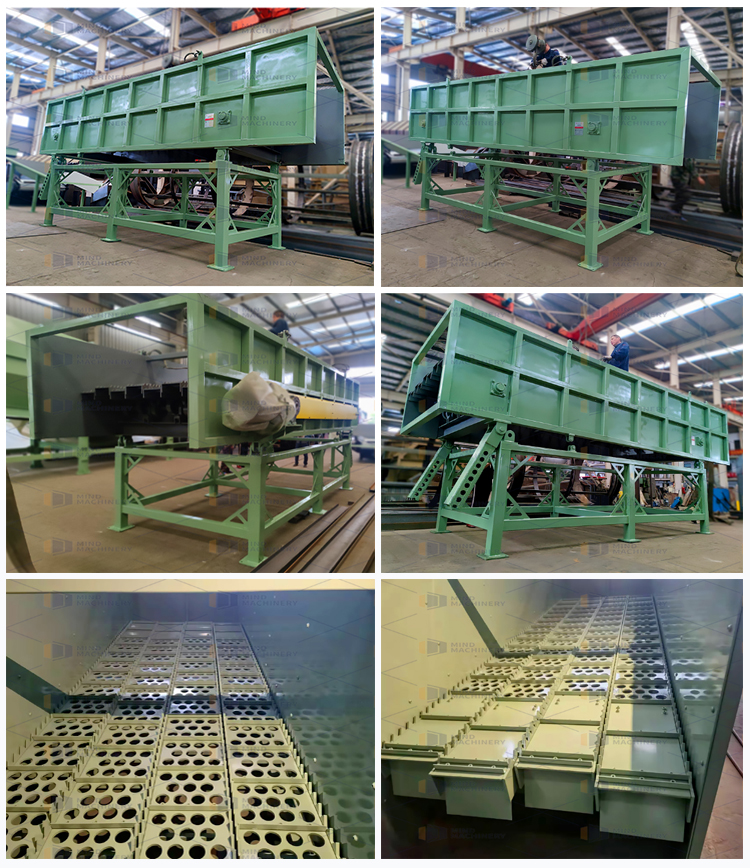

Ballistic Separators are designed for sorting 2D materials
(plastic film, paper, cardboard and fibers) and 3D materials
(containers, plastic bottles, cans, stone, wood, etc.).
They can also sort fine particles that can be collected separately
with the optional variable screen openings.
In addition to being sturdy and reliable, the Ballistic includes many
of the benefits of our current Separators with added features
improving performance.
This separator can handle different material types including Single-stream,
Municipal Solid Waste, Commercial and Industrial Waste.
Multiple separators can be configured vertically or horizontally
to address customer sorting challenges.
Highlights & Benefits
Easy and Safe Maintenance
No Wrap Design Reduces Operating, Cleaning & Maintenance Costs
Versatility: Enables Processing of Different Material Streams Within a Single System
Angle Adjustment (optional)
Constant Performance with All Steel Screening Surface
Single Motor and Direct Drive System Reduces Maintenance and Energy Costs
| BS04 | BS06 | BS08 | BS10 | BS12 | |
| Paddy Number | 4 | 4 - 6 | 6 - 8 | 6 - 8 | 6 - 10 |
| Paddle length | 5.5m | 5.5m | 5.5m | 5.5m | 5.5m |
| Angle adjustment | 0 – 25° | 0 – 25° | 0 – 25° | 0 – 25° | 0 – 25° |
| Sieve hole size | 20-80 mm | 30-80 mm | 30-80 mm | 30-80 mm | 30-80 mm |
| Fan Number | 2 - 4 | 2 - 4 | 2- 4 | 2 - 4 | 2 - 4 |
| Power | 5.5kw | 7.5kw | 11kw - 15kw | 11kw -18.5kw | 22kw |
| Throughput | 0-30 m³/h | 30-50 m³/h | 50-70 m³/h | 70-90 m³/h | 90-120 m³/h |
