Double shaft shredder

Date:2024-10-10
View: Point

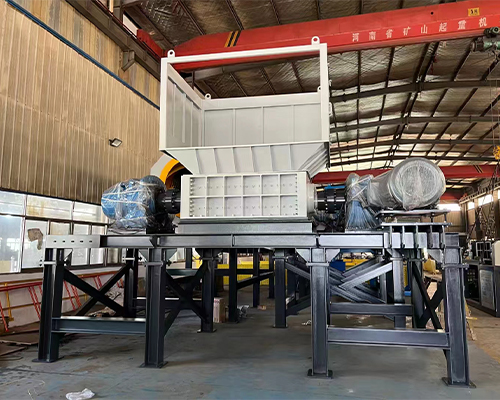

The Double-Shaft Shredder is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components or work with other stages of shredders depending on the material and final size, reducing the material to the required size.

Zhongcheng double-shaft industrial shredders are built using a combination of revolutionary design concepts, advanced machining processes and strict quality control requirements. At the same time, we only work with qualified suppliers to ensure capacity, longevity and long-term operational reliability.

Zhongcheng has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.


Double Shaft Shredding Machine is suitable for all kinds of hollow containers: plastic beverage cans, plastic buckets, iron drums, packing boxes, packing drums; automobile housing, aluminum alloy, scrap cast aluminum parts, engine housing, lead and steel plates with thickness below 5mm, etc.


Parameters


Model60080010001200140016001800
Motor(kw)11*2
18.5*2 35*245*255*275*2110*2

Reducer

P6-P7P7-P8P8-P10P10-P12P11-P13P12-P16P14-P16
                                  Siemens or other motors, planetary reducers or other reducers can be customized according to customer requirements
Rotation Speed8-20rmp
8-20rmp8-15rmp8-15rmp8-15rmp8-12rmp8-12rmp

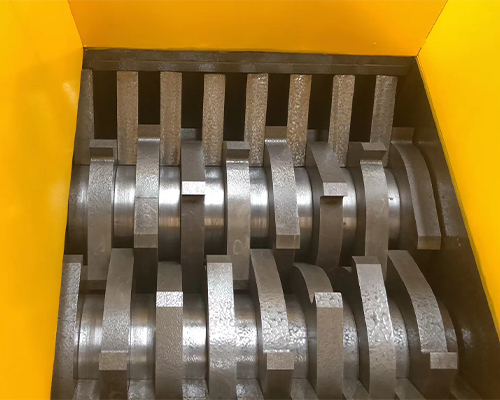

Blades Diameter220-320260-320260-400400-500400-500500500
Blades materialThe material of the blades (55sicr, 5crsi, 9crsi, skd11, m6v, h13) can be customizedaccording to the customer's actual usage
Feeding Size1200*900mm1400*1000mm1600*1200mm1800*1300mm2000*1300mm2200*1700mm2400*2000mm
                     The size and appearance of the feeding hopper can be customized according to thecustomer's feeding situation
Weight(kg)1800
2500370055007500950013000


Author:Yu Qanqan

Yu Qanqan is a senior engineer of Zhongcheng Machinery Co., Ltd. She has rich theoretical knowledge and working experience in mechanical manufacturing, and has a deep understanding of the relevant industries of waste screening machinery and crushing machinery. She is willing to share the knowledge of screening machinery and crushing machinery.
